Ebike Conversion Kit 48V 1500W / 1200W – 26" Fat Tire Front/Rear Electric Bike Motor Kit

Quick Overview:
Upgrade your bike with the 48V Ebike Conversion Kit, available in 1200W or 1500W versions. Built for fat tire bikes, this kit includes everything you need—hub motor, controller, LCD display, throttle, brake levers, PAS sensor, and torque arm. The waterproof design ensures reliability in all weather, while the powerful motor provides smooth acceleration, excellent torque, and hill-climbing capability.

Product Description:
Transform your 26" fat tire bike into an electric powerhouse with this comprehensive e-bike conversion kit. Whether you choose the 1200W or 1500W option, the hub motor delivers impressive speed and torque for city commuting, mountain trails, or beach cruising.

The double-walled aluminum rim and pre-installed hub motor make setup straightforward—simply swap out your existing wheel and connect the included components. With a waterproof design, the motor and controller are built to withstand rain and tough riding conditions.

This kit is versatile and compatible with a variety of bikes, including cruisers, mountain bikes, and adult tricycles. Please note: Battery and tire are not included.

Key Features:

• 48V hub motor (1200W or 1500W options)
• Compatible with 26" fat tire bikes (rim width 80mm)
• Waterproof motor and controller for all-weather reliability
• LCD display with real-time riding data
• PAS (pedal-assist system) and throttle included
• Strong torque for hill climbing (30 Nm, >82% efficiency)

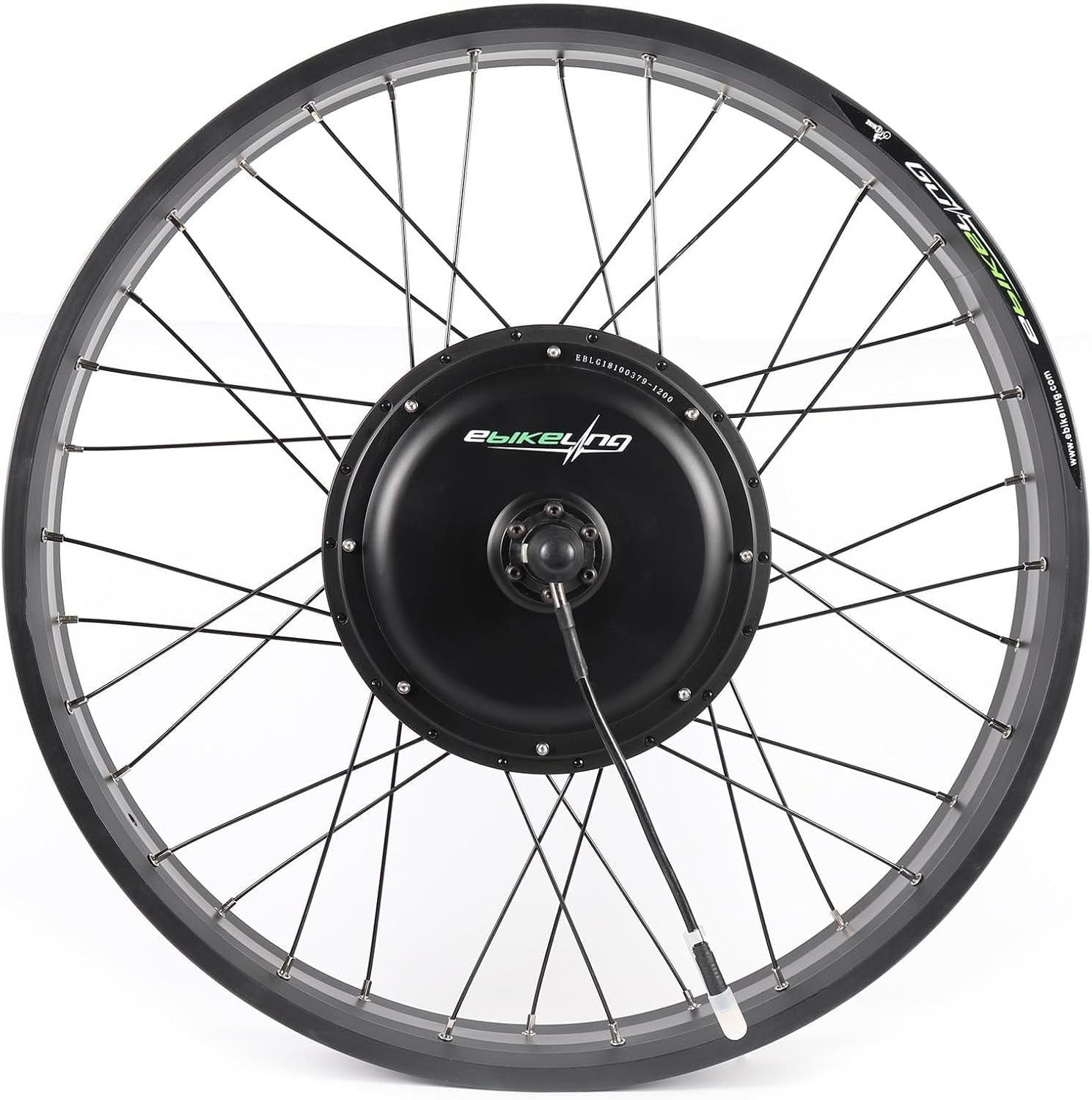

• Ready-to-install double-walled aluminum rim and hub motor
• 1-year warranty on hub motor, 3-month warranty on other components

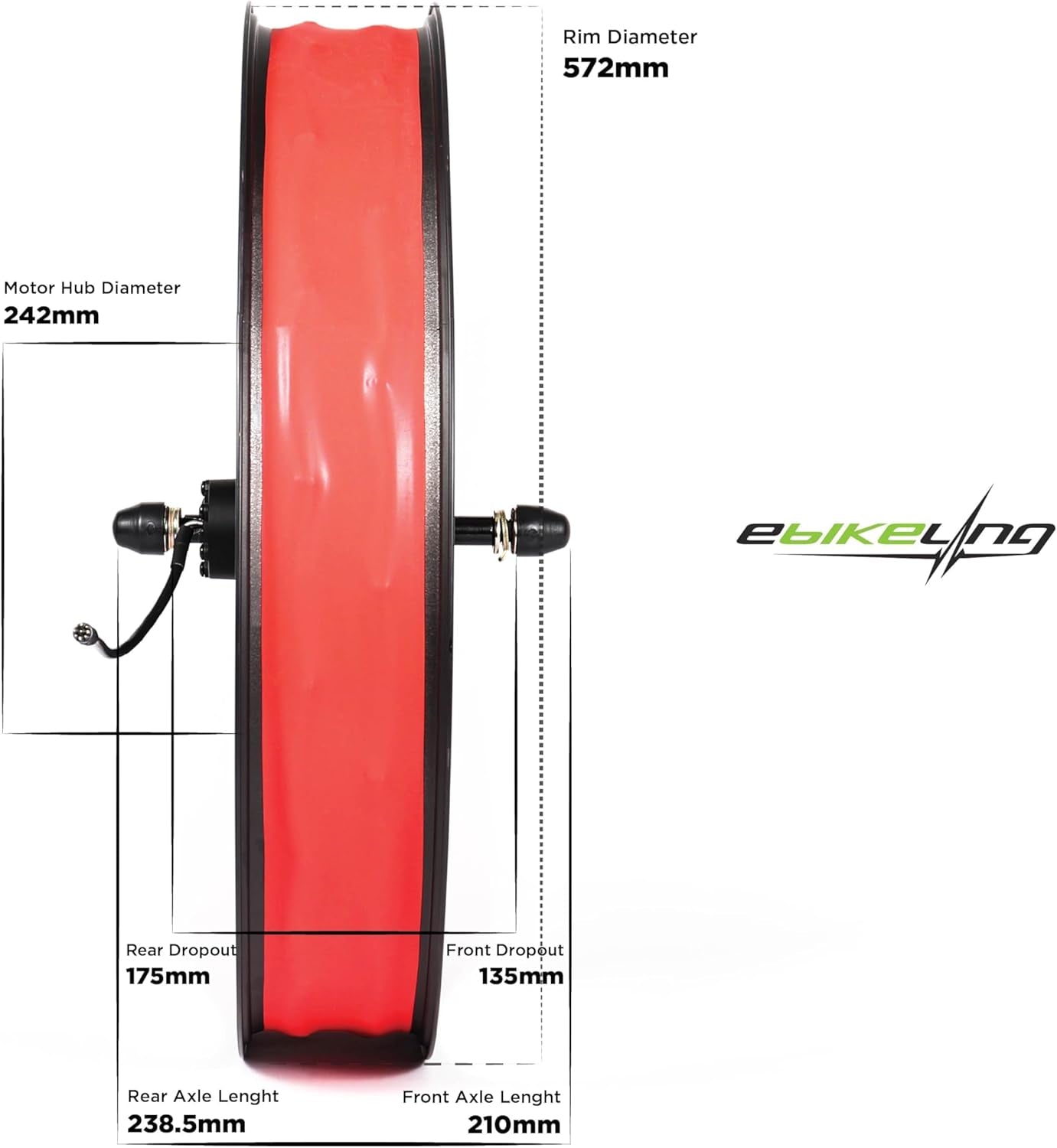

Specifications:

• Tire size: 26" fat tire (recommended width 4")
• Rim width: 80 mm
• Rim diameter: 572 mm (outer) / 535 mm (inner)
• Motor torque: 30 Nm
• Motor RPM: 430
• Motor hub diameter: 242 mm
• Motor magnets: 46
• Peak power: 1.45 kW
• Axle sizes: Front dropout 135 mm / Rear dropout 175 mm
• Kit weight: Front 23.5 lbs / Rear 27 lbs

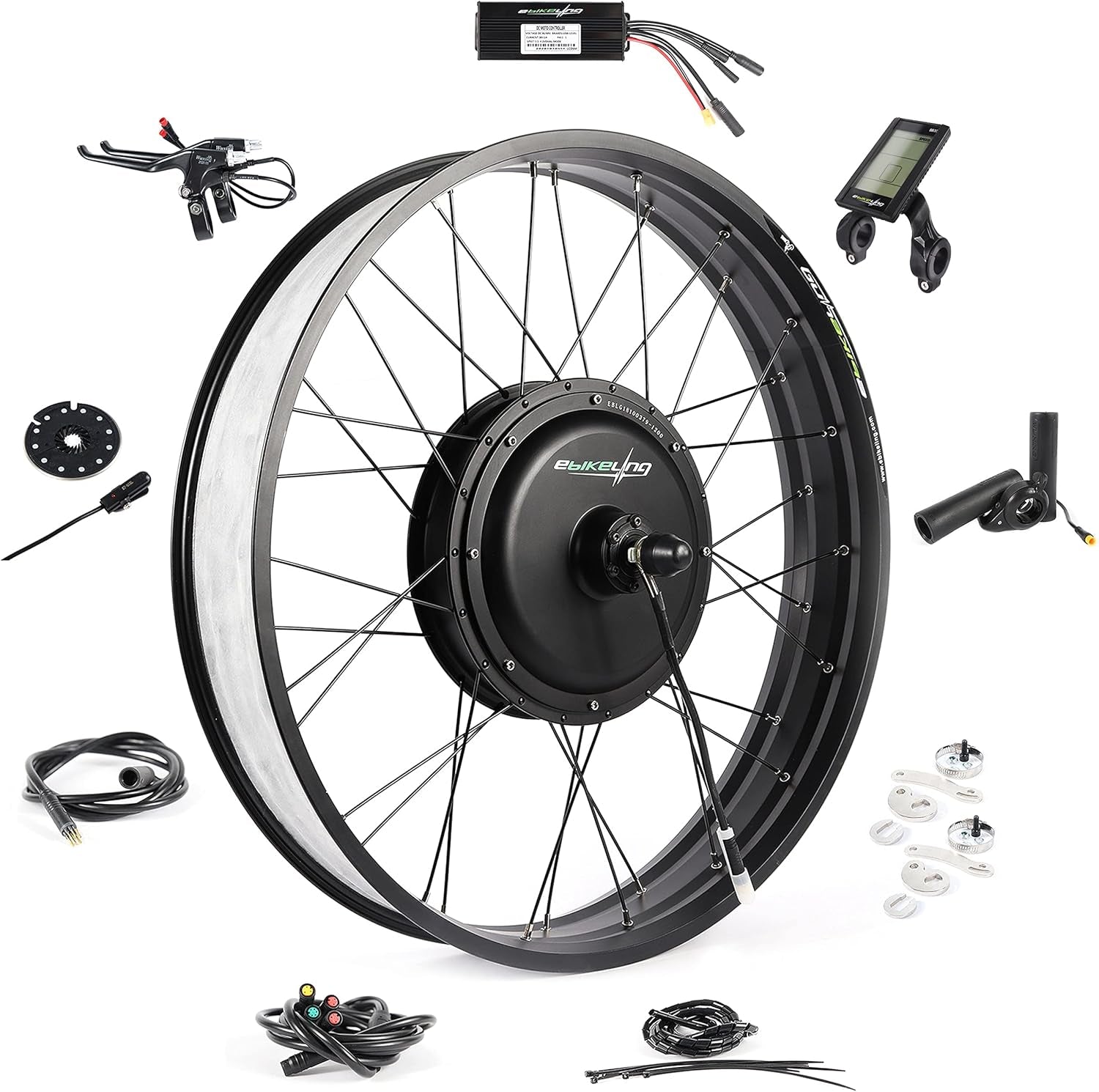

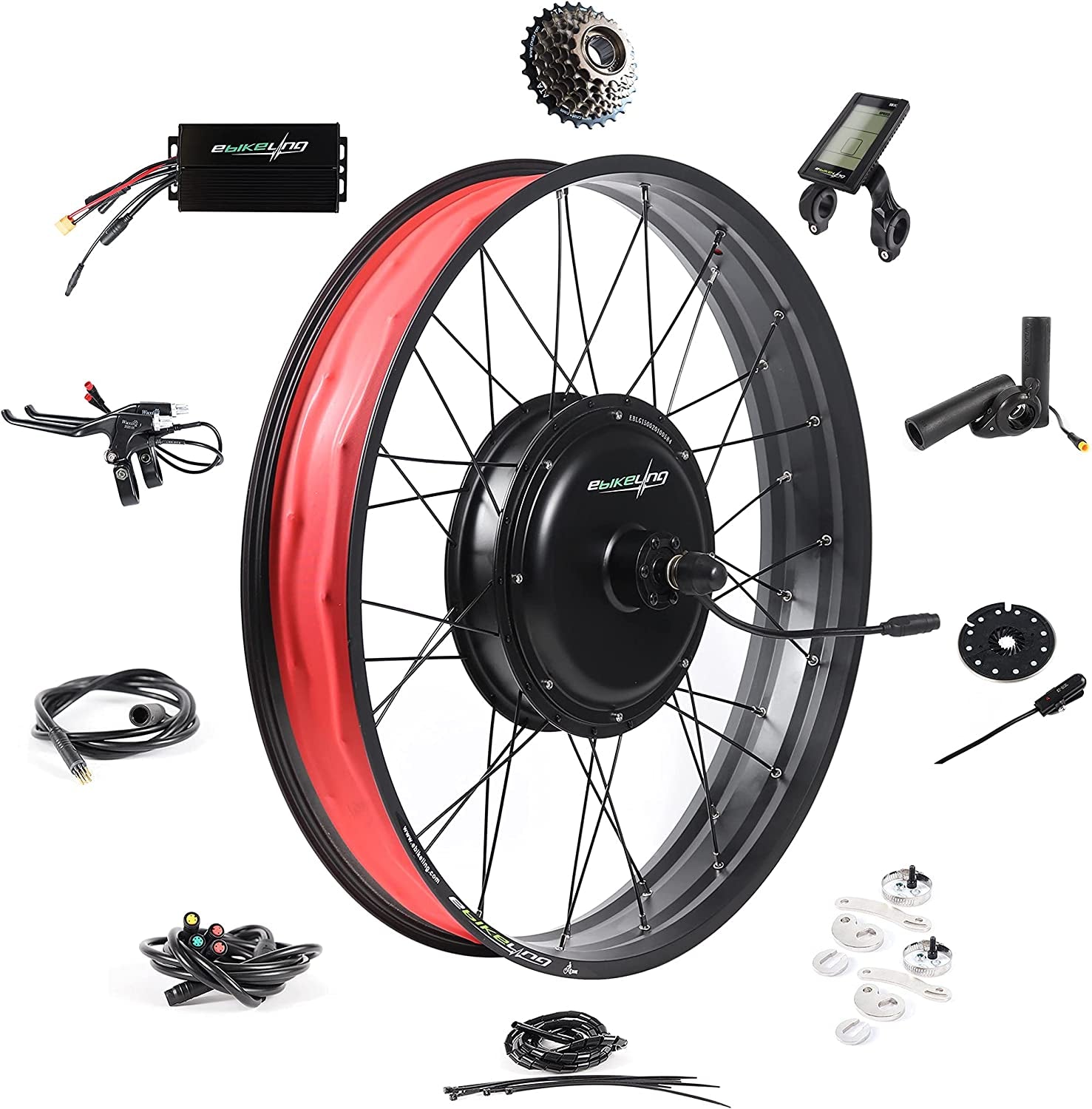

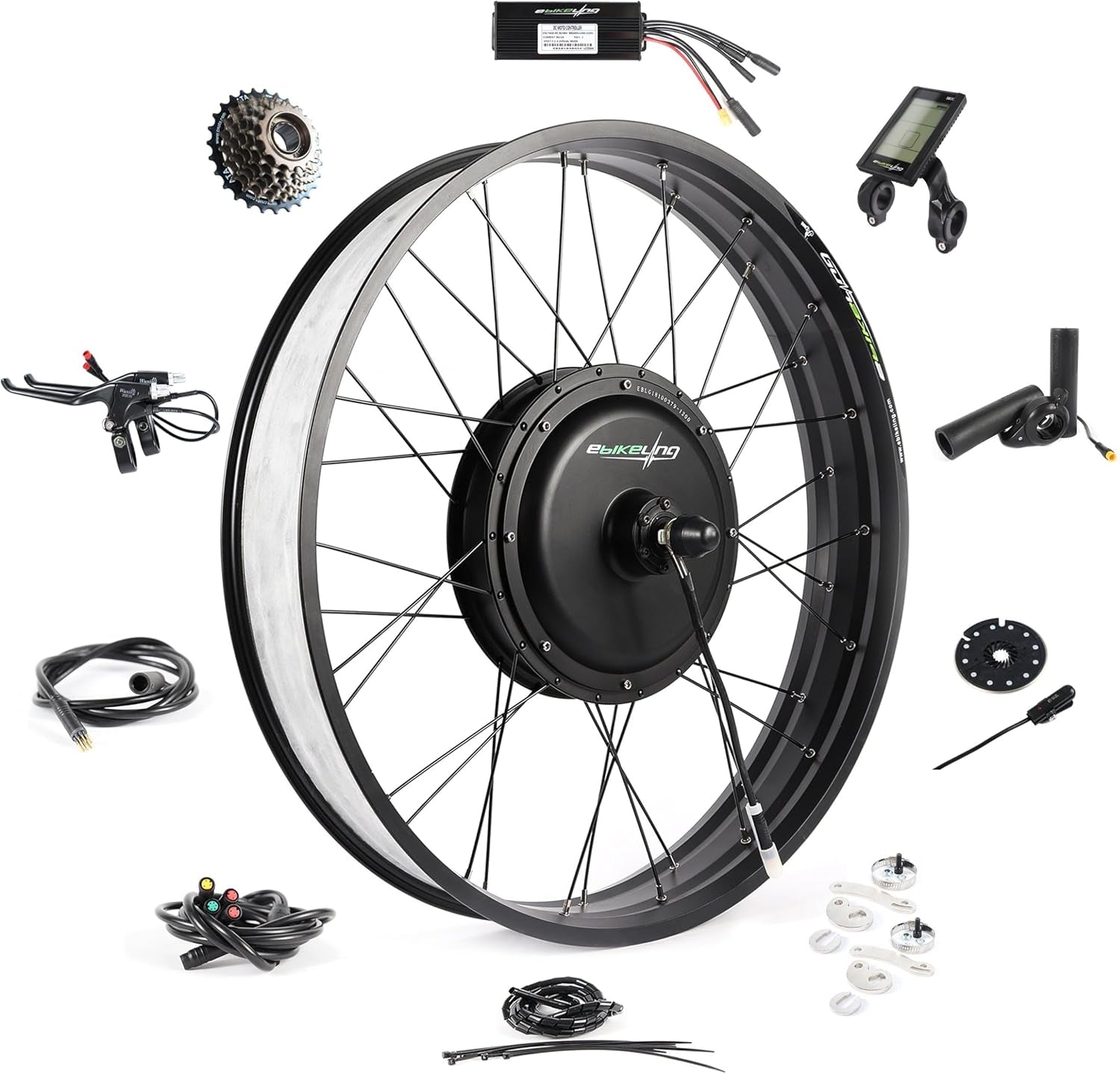

Package Includes:

• 1 × Hub motor wheel (1200W or 1500W)
• 1 × Controller (SY60 battery connector, XT60 compatible)
• 1 × LCD display
• 1 × Throttle
• 2 × Brake levers (optional, kit works without them)
• 1 × PAS sensor
• 1 × Torque arm
• 1 × Set of cable ties
