48V 1200W Front Hub Motor E-Bike Conversion Kit – 700C Wheel
48V 1200W Front Hub Motor E-Bike Conversion Kit – 700C Wheel
Couldn't load pickup availability
🚀 Free Shipping
🔄 30-Day Returns
🔒 Secure Checkout
Quick Overview:
This all-in-one conversion kit transforms your regular bicycle into an electric bike with ease. Designed for 700C wheels, it features a waterproof hub motor, efficient controller, and LCD display. Riders can choose from four power options depending on their needs—from daily commuting to high-performance off-road riding.
Product Description:
The 48V front hub motor conversion kit is engineered for durability and performance in all weather conditions. Its aluminum double-walled rim comes pre-installed with the hub motor, ensuring simple installation and reliable operation.
Choose between 500W, 750W, 1200W, and 1500W motor versions to match your riding style. The system offers pedal-assist, throttle control, and efficient power delivery with over 82% efficiency. Designed for road bikes, commuters, cruisers, and mountain bikes, this kit provides smooth acceleration, hill-climbing power, and extended range.
Key Features:
- Multiple Power Options: 500W, 750W, 1200W, 1500W
- Waterproof Components: Ride confidently in rain and snow
- High Efficiency: Hub motor with ≥82% efficiency
- Top Speeds: Up to 25 mph (500W/750W), 30+ mph (1200W/1500W)
- Strong Torque: Ideal for hills and long-distance rides
- Durable Rim & Spokes: Aluminum double-walled rim, 12G carbon steel spokes
- LCD Display: Monitor speed, battery, and power assist levels

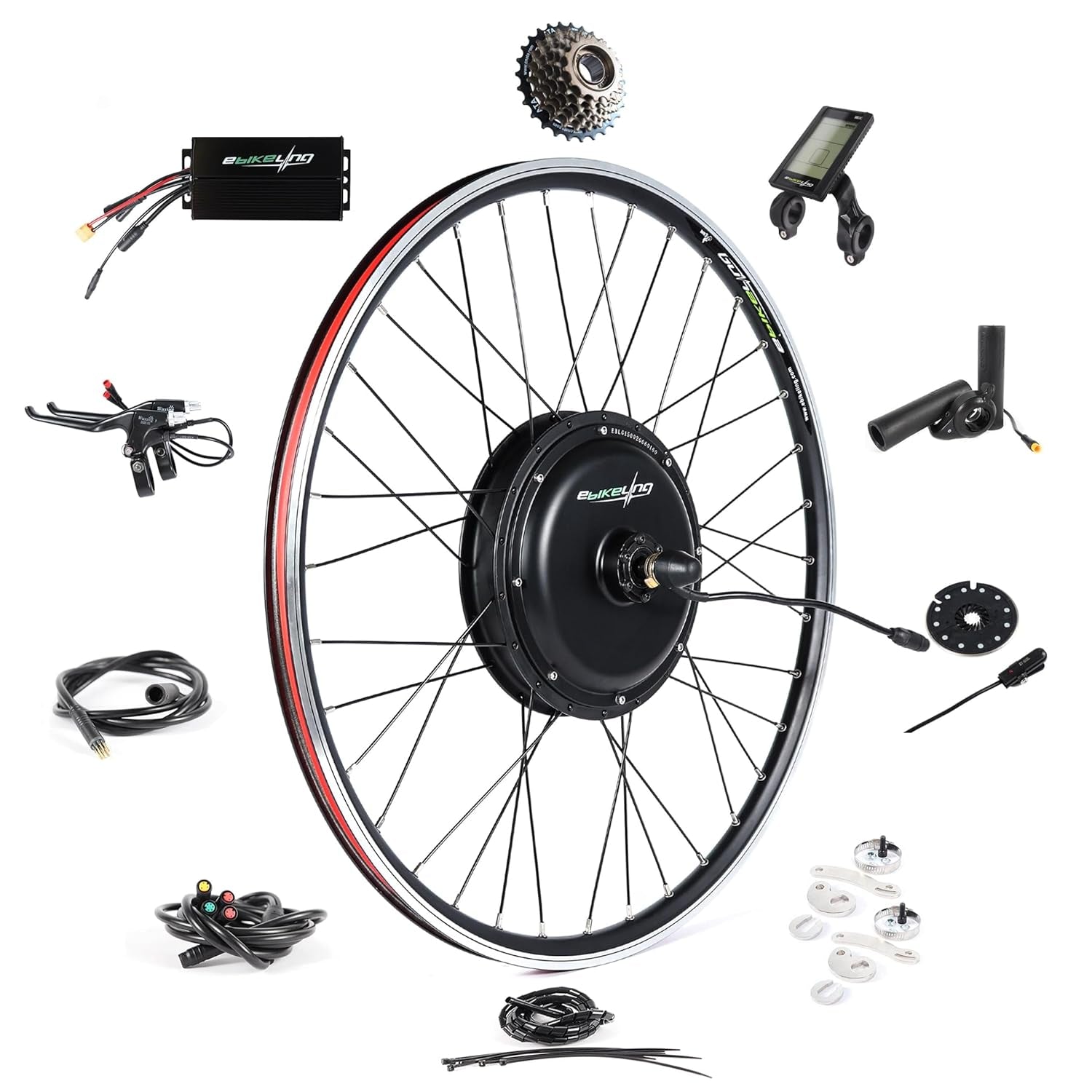

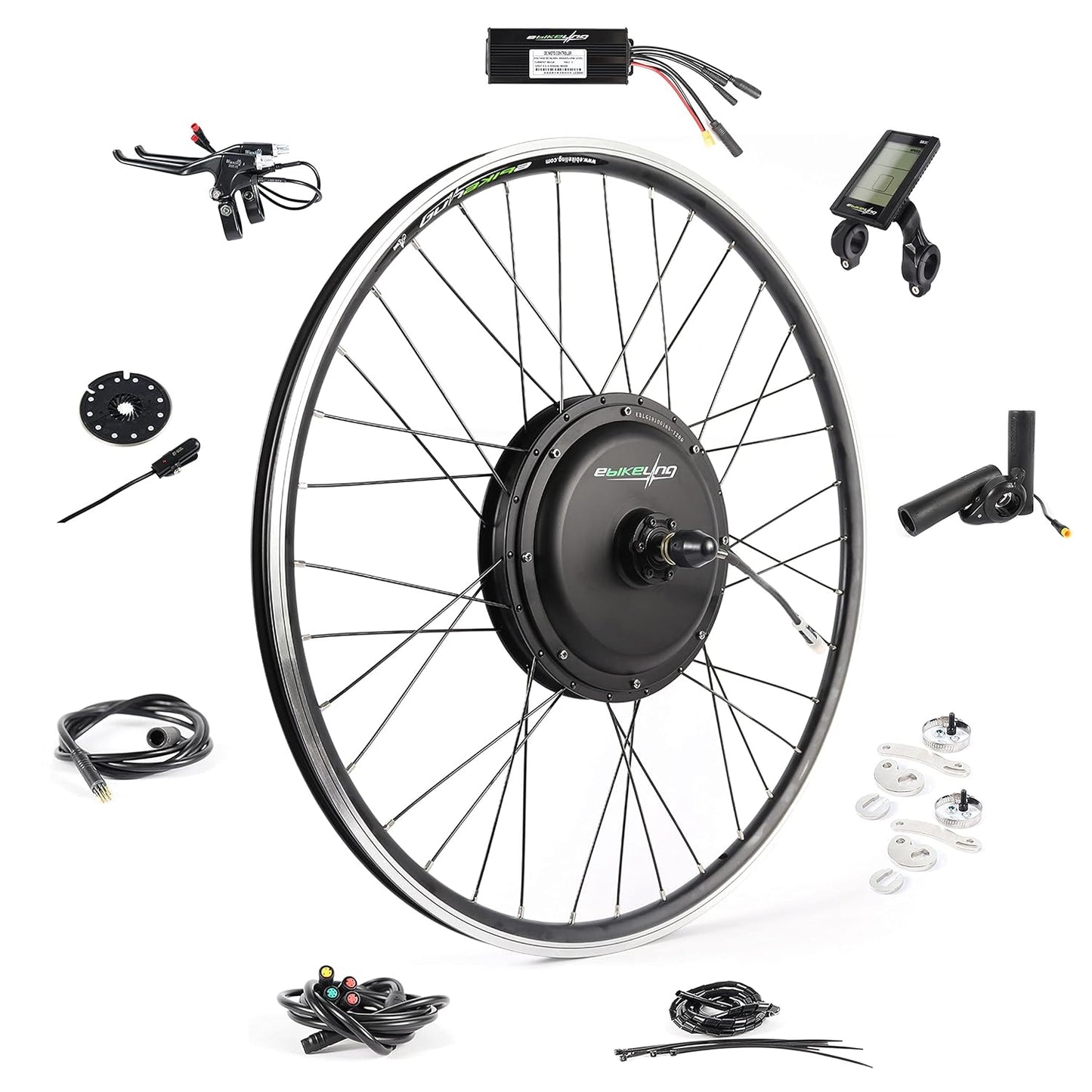

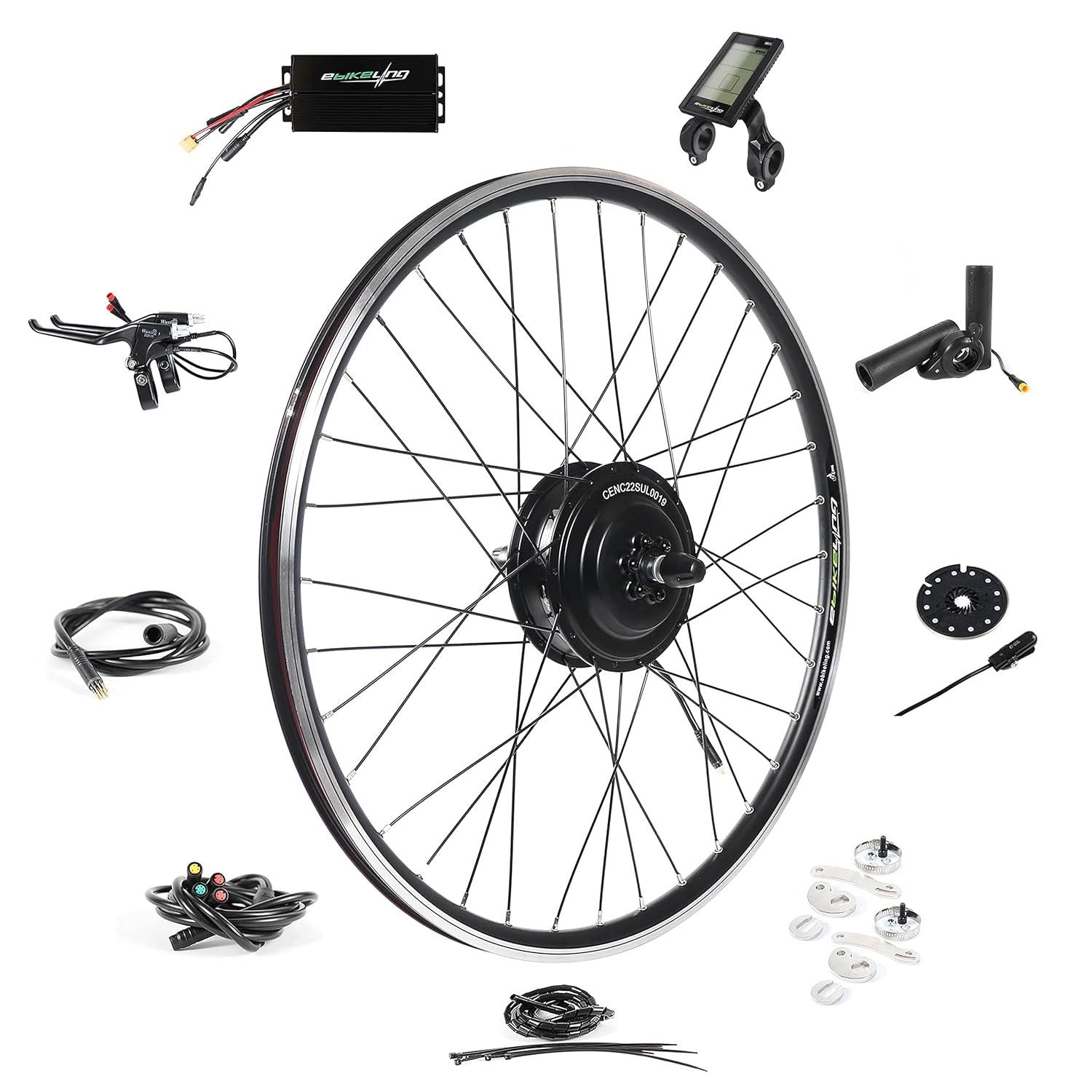

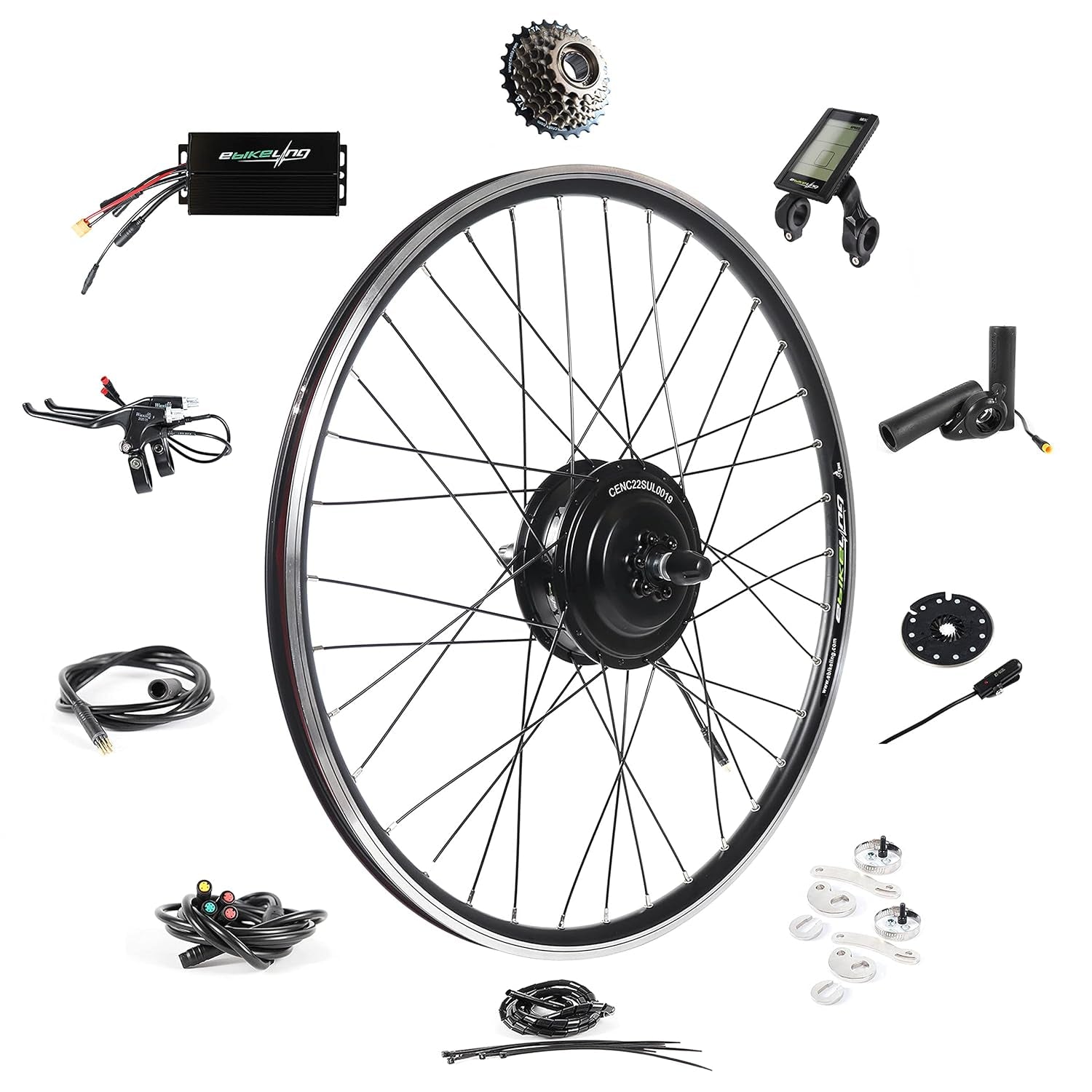

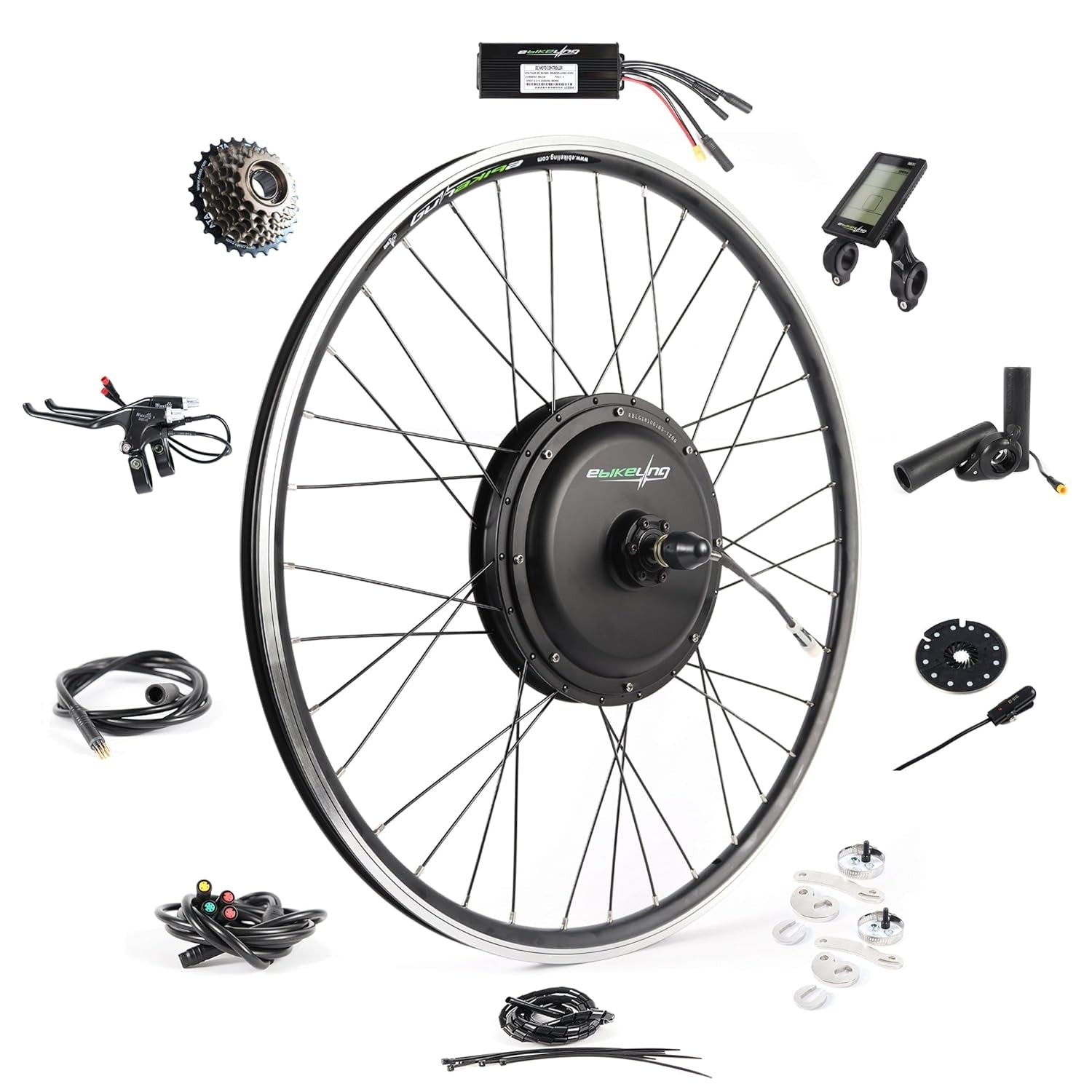

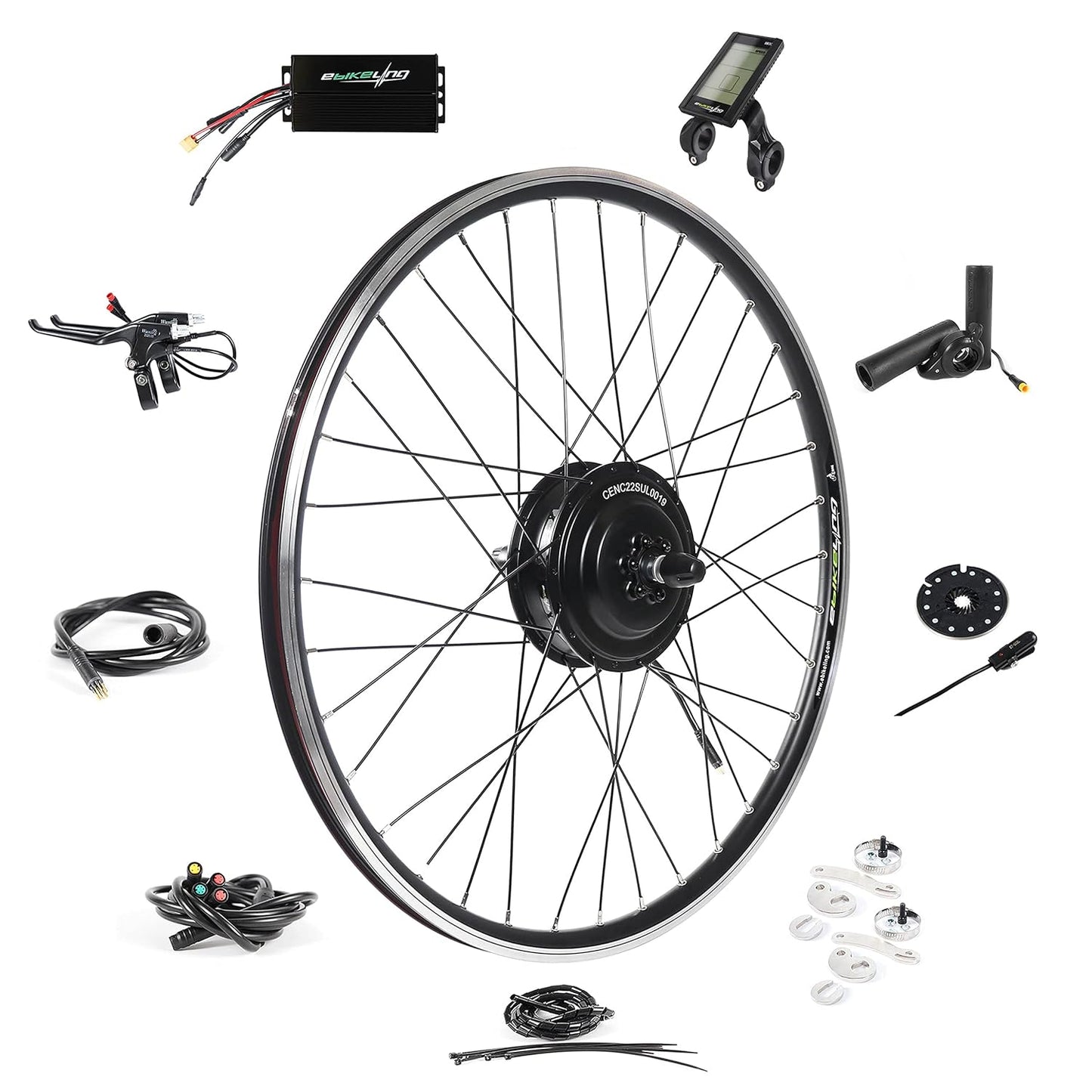

- Complete Kit: Motorized wheel, controller, LCD display, throttle, PAS, brake levers, torque arm, and cables
- Warranty: 1-year motor warranty, 3 months on other components
Specifications:
- Voltage: 48V
- Motor Power: 500W / 750W / 1200W / 1500W (peak up to 1.5kW)
- Motor Efficiency: ≥82%
- Motor RPM: 430
- Motor Torque: ~30 Nm

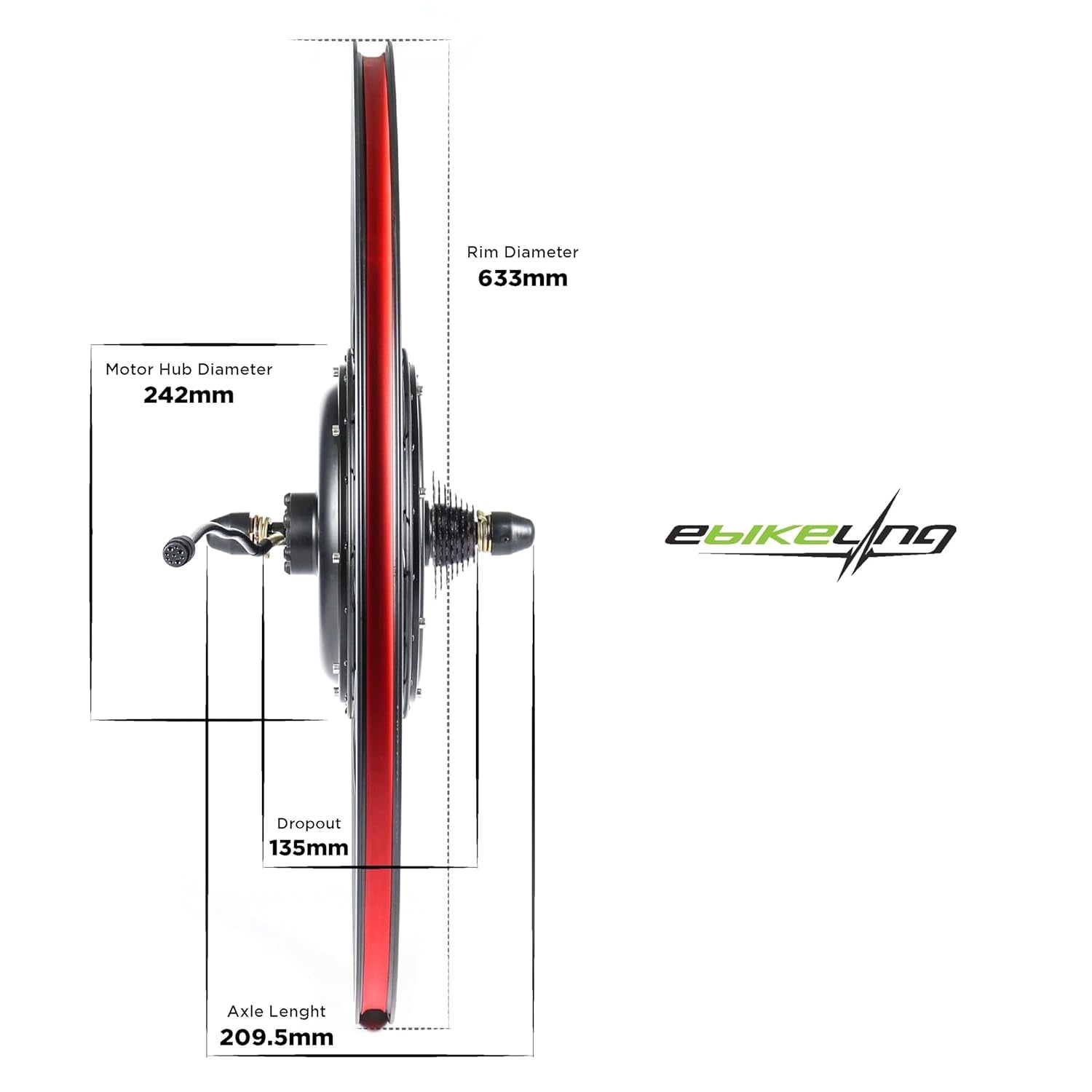

- Rim Size: 700C (Outer: 633mm / Inner: 583mm)
- Rim Width: 19mm
- Spokes: 188mm, 12G carbon steel with copper nipples
- Front Axle Length: 173mm / Dropout 98mm
- Kit Weight: ~23 lbs
- Motor Hub Diameter: 242mm, 46 magnets
- Operating Mode: Pedal Assist + Throttle
- Waterproof: Yes
- Battery: Not included
Package Includes:

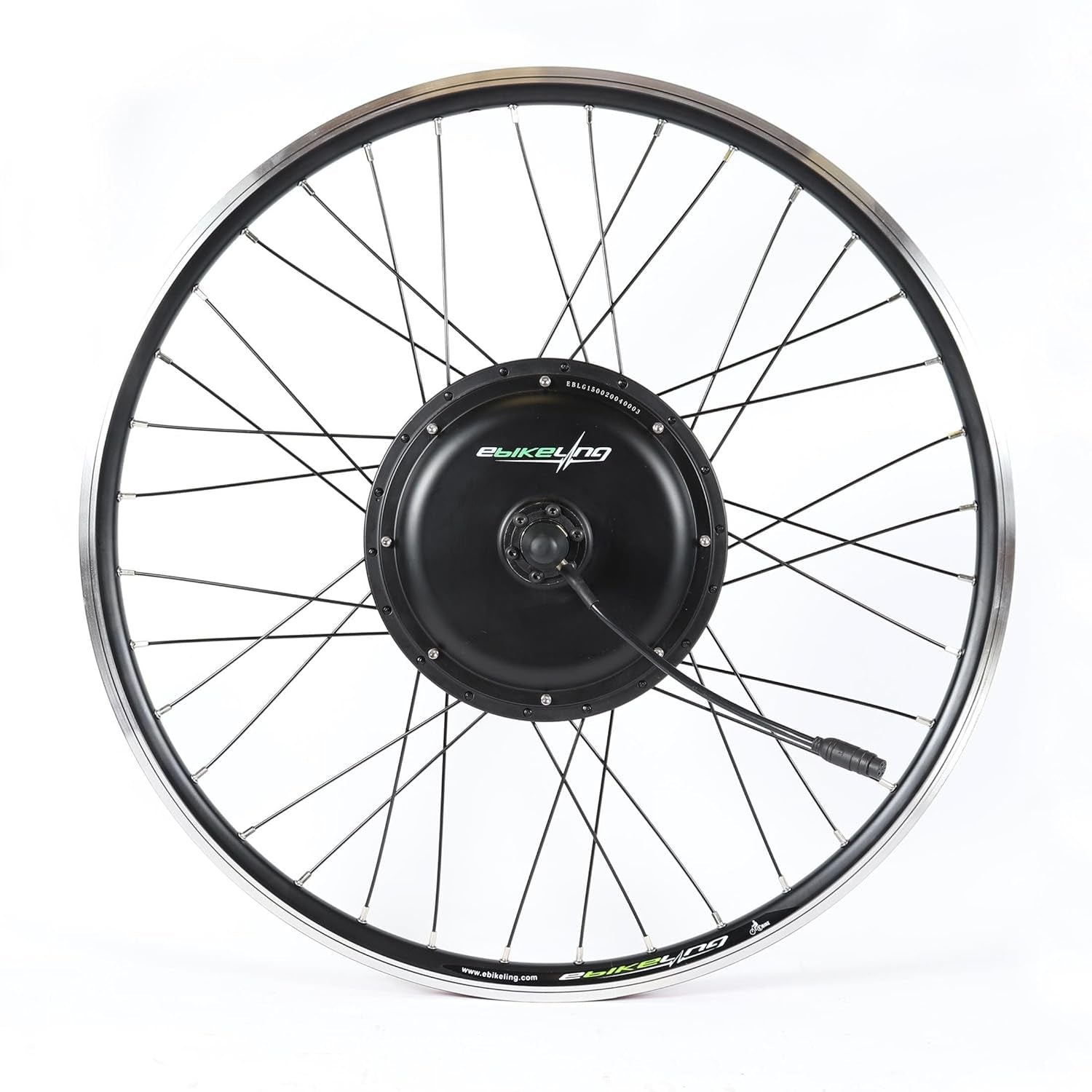

- 1 × Motorized 700C Wheel with Hub Motor
- 1 × Motor Controller
- 1 × LCD Display
- 1 × Throttle
- 1 × PAS (Pedal Assist Sensor)
- 1 × Pair of Brake Levers (or hydraulic sensor)
- 1 × Torque Arm
- 1 × Set of Cables & Ties
- Battery & Tire not included
