TSNature 36V/48V E-Bike Light Kit – Headlight with Horn, Turn Signal & Brake Tail Light
TSNature 36V/48V E-Bike Light Kit – Headlight with Horn, Turn Signal & Brake Tail Light
Free shipping across the contiguous US
Couldn't load pickup availability
- Free shipping4–9 business days
- 30-day returnsHassle-free returns
- Secure checkoutPowered by Stripe
- Real supportMon–Fri, 9–5 MT
Quick Overview

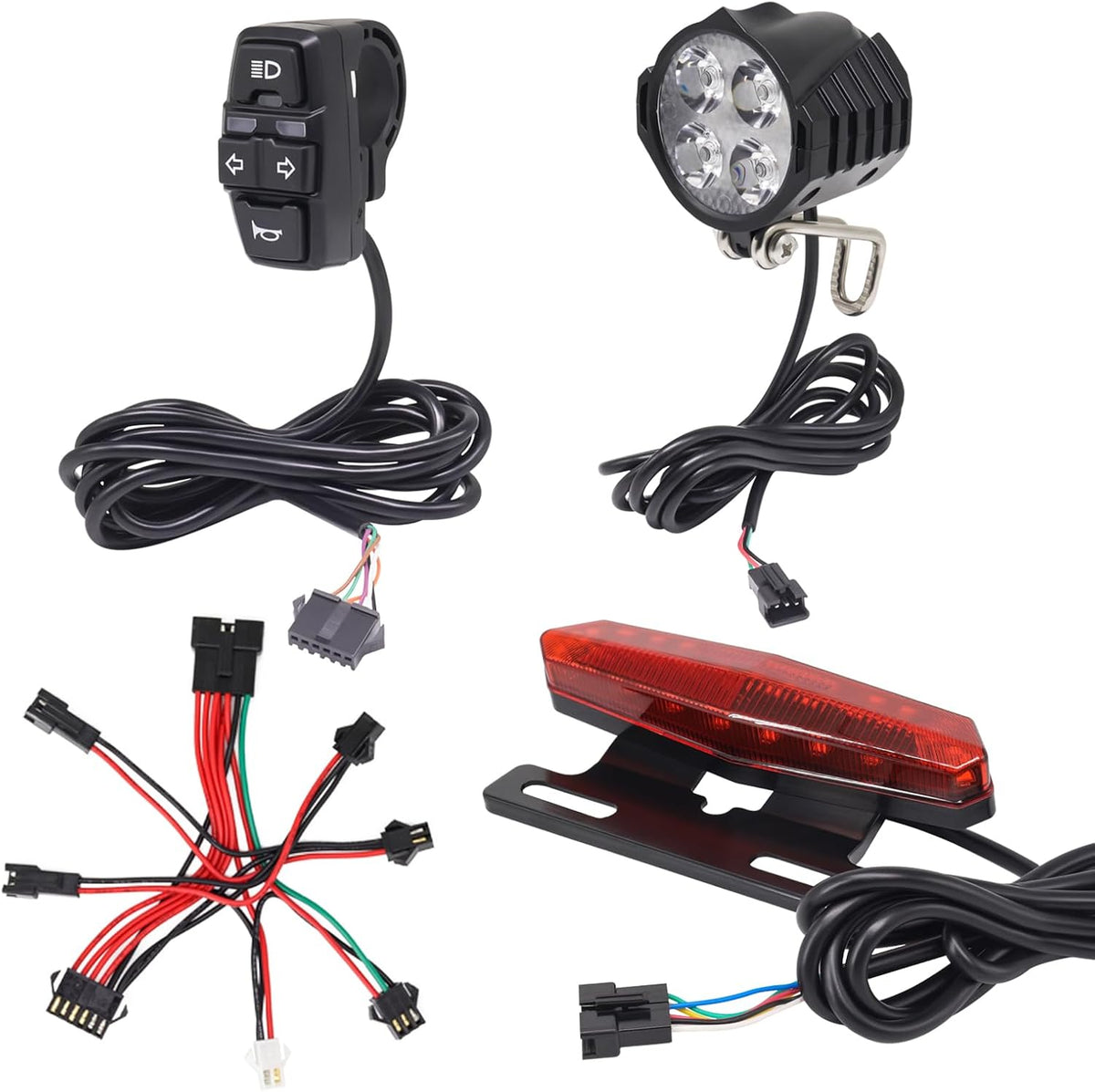

A complete lighting set for 36V and 48V e-bikes: a 400 lumen headlight with built-in horn, a rear light with turn signals and brake light, and a handlebar switch to control it all. It powers from your e-bike battery, so there is nothing to recharge.
Product Description

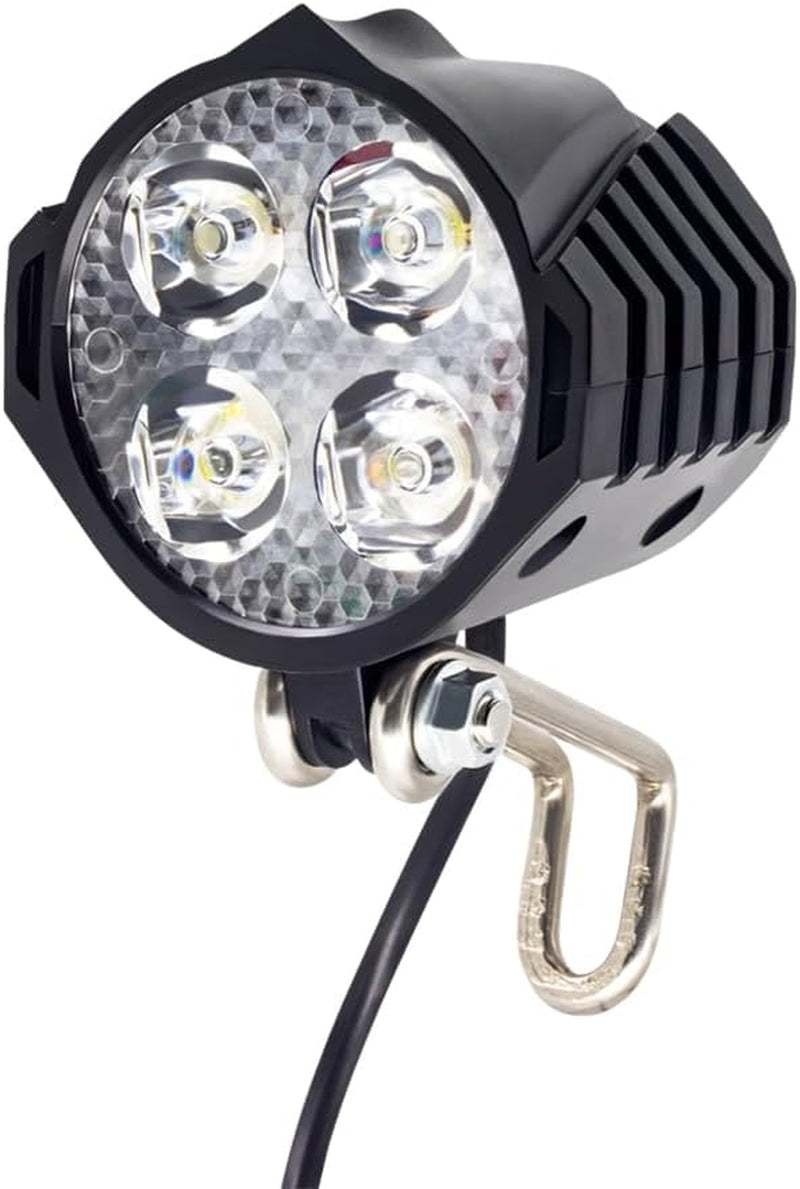

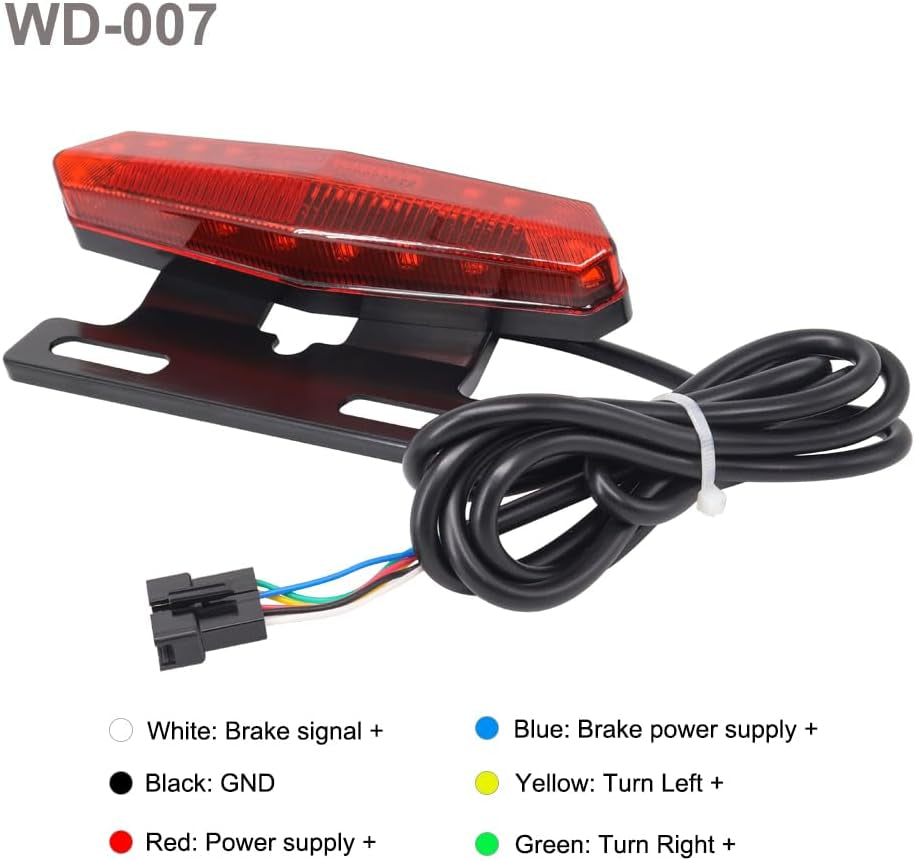

The headlight has 4 LEDs and a wide 400 lumen beam for city riding at night. It also contains an 80–100dB horn. The rear light mounts to most bike racks with 50mm or 80mm hole spacing and shows left and right turn signals plus a brake light.

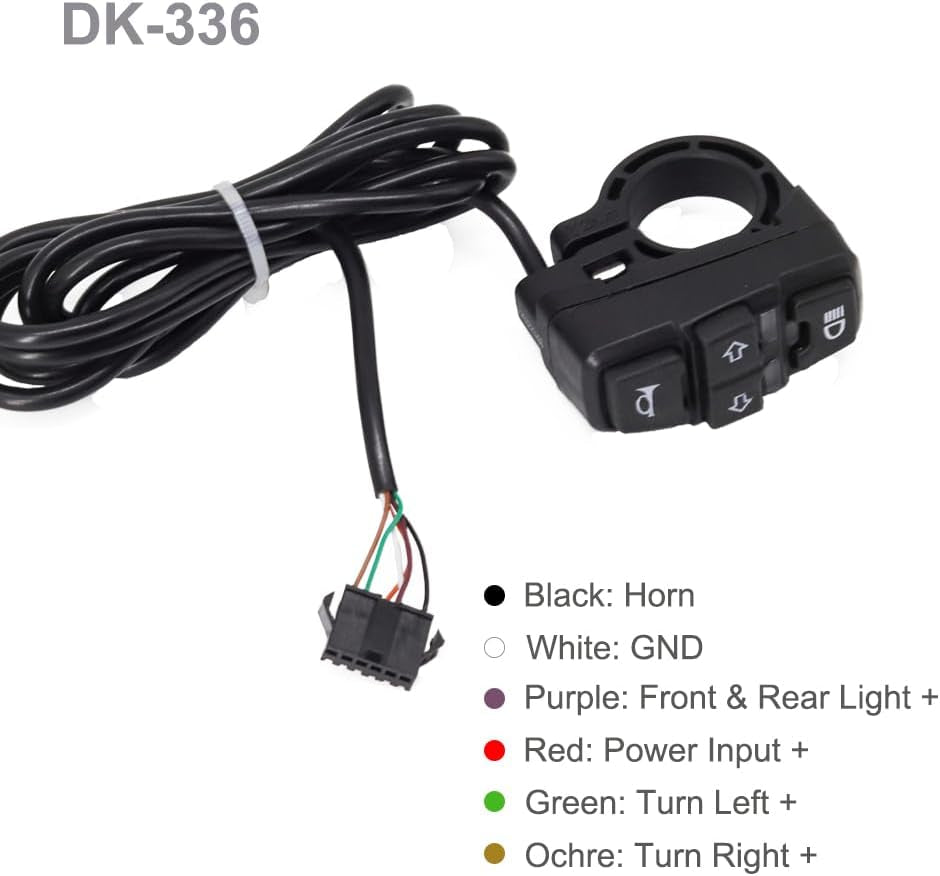

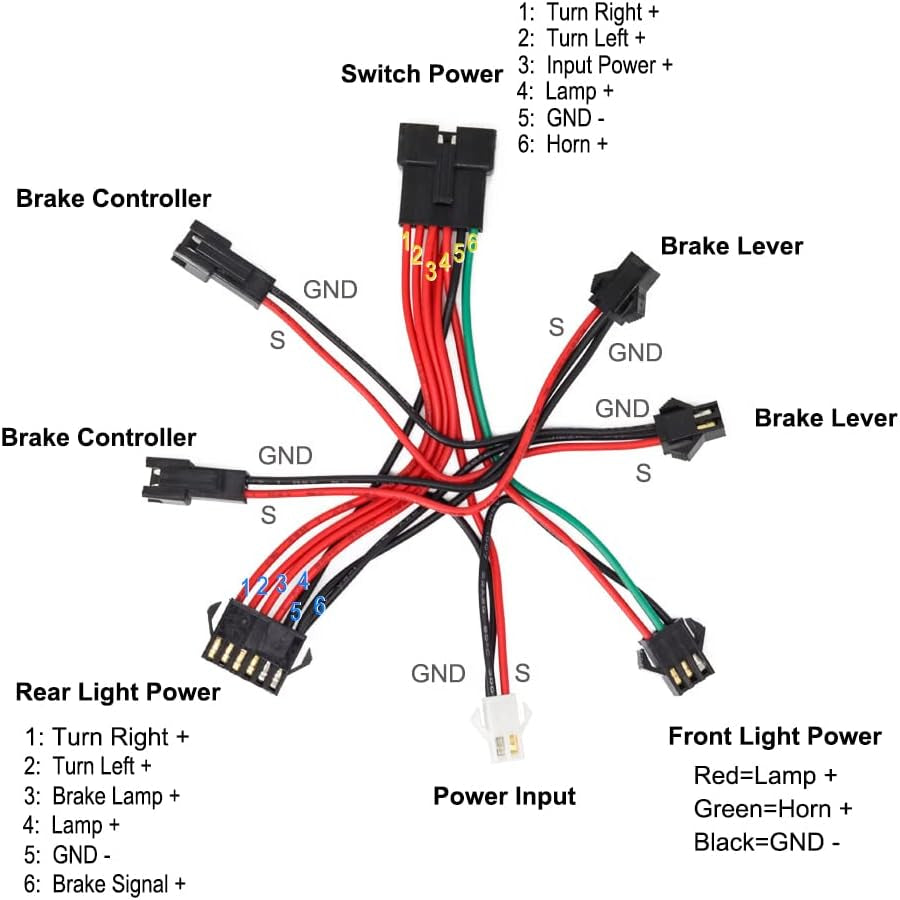

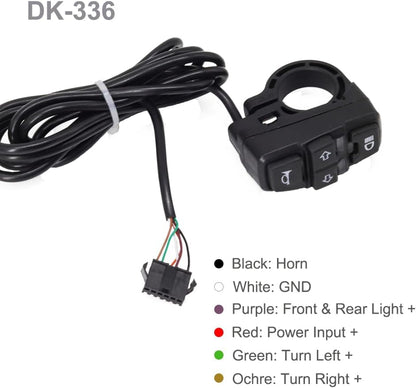

The handlebar switch fits 22mm bars and has buttons for the left and right signals, the headlight and the horn. All three parts connect through a wiring harness that also links to your brake levers and controller.
Details & Benefits
Please check compatibility before you order:
- The power input is a white male XH2.54 connector. It is not compatible with 2-pin or 3-pin waterproof connectors.
- It needs a 36V or 48V system with more than 5W available from the light port. Many mid-drive motors only supply 6V/12V 3W for lights and won't work.
- For the brake light to work, the kit must run from the same battery as the controller, and the brake signal must be low voltage (below 6V).
Key Features
- 400 lumen headlight: 4 LEDs, wide beam angle
- Built-in horn: 80–100dB
- Turn signal tail light: left/right flashing from the switch
- Brake light: lights up when you brake
- Handlebar control switch: IP65, fits 22mm bars
- Rack mount: fits 50mm and 80mm hole spacing
Specifications
- Voltage: 36V–48V
- Headlight: 400LM, 2.5W, 62 × 50 × 70mm, 100g, 1.5m cable
- Horn: 80–100dB
- Rear light: 1.5W, 131 × 66 × 40mm, 1.2m cable, fits 50/80mm rack holes
- Switch: IP65, 22mm handlebar, 1.5m cable, max 1A
- Power connector: white male XH2.54
- Light port requirement: more than 5W output
Package Includes
- 1 × Headlight with horn
- 1 × Rear light with turn signals and brake light
- 1 × Handlebar switch with wiring connector
- Headlight and rear light mounting screws
- 1 × User manual
