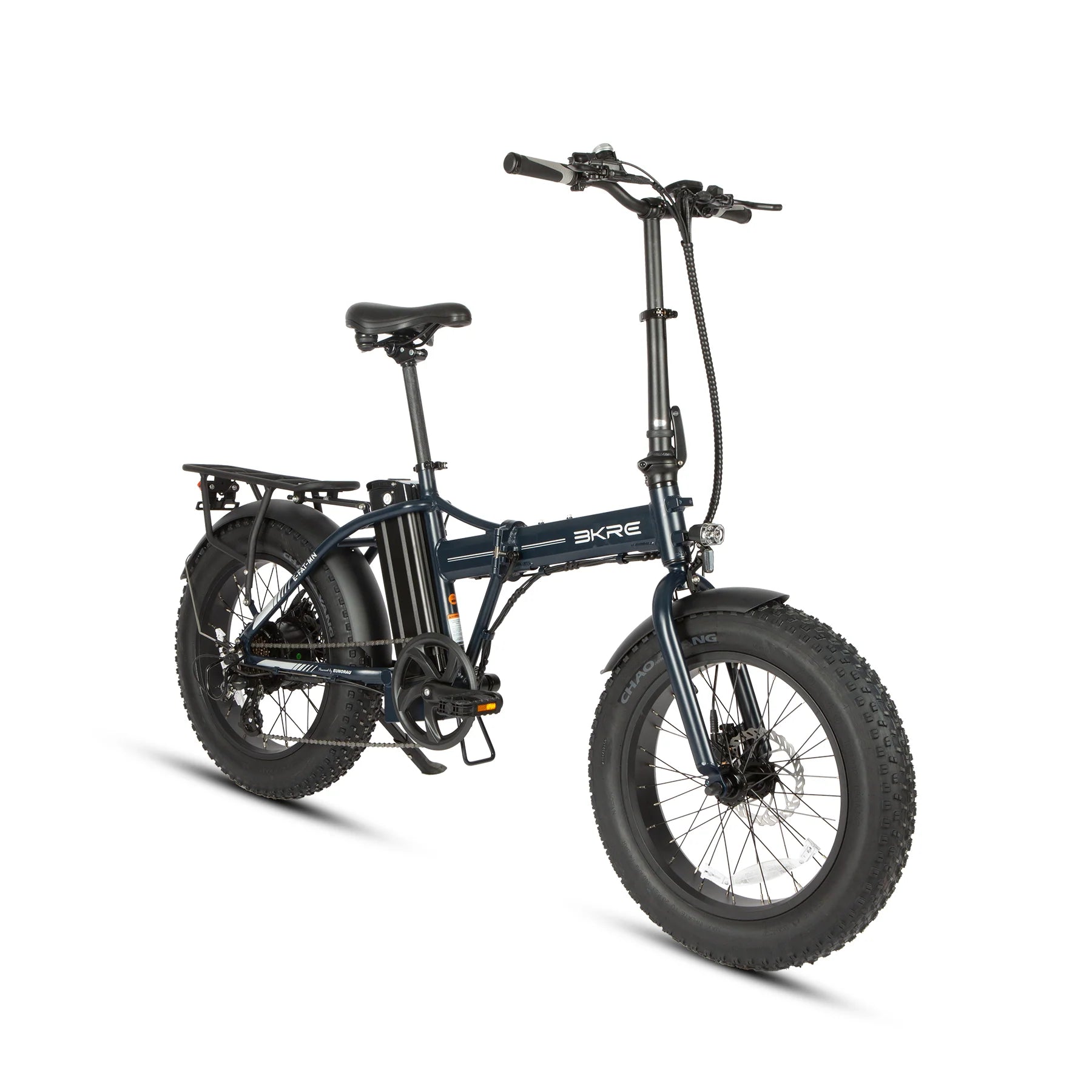

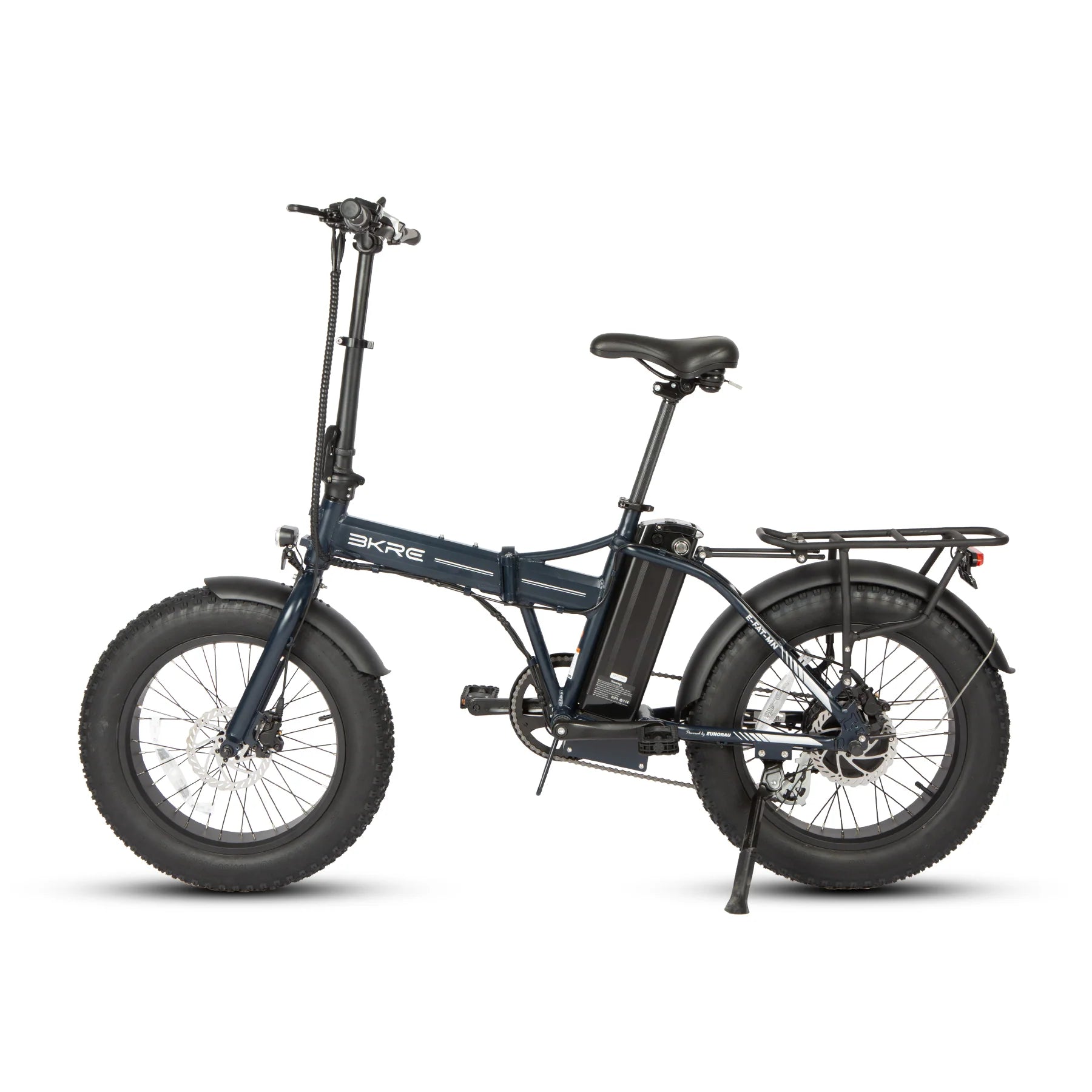

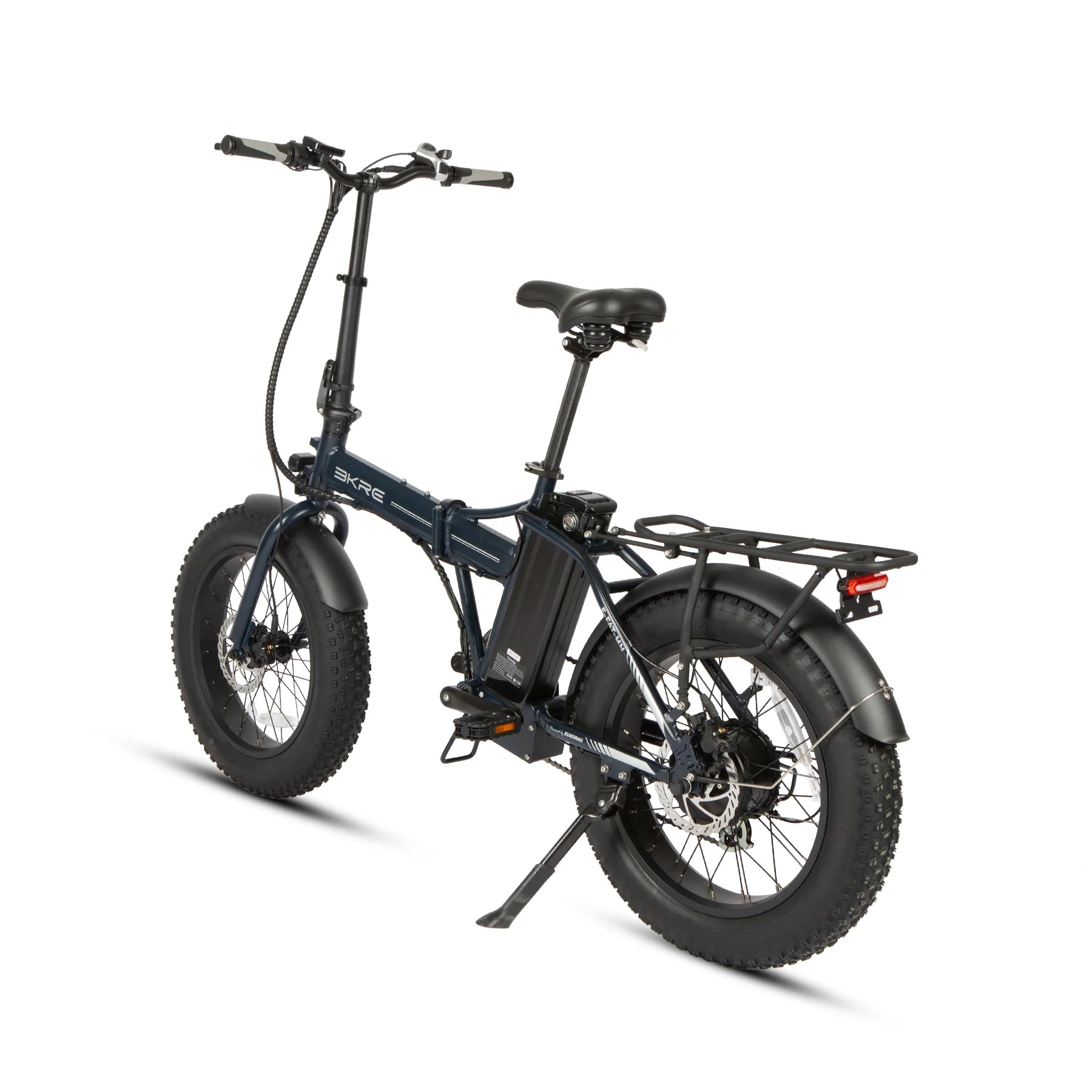

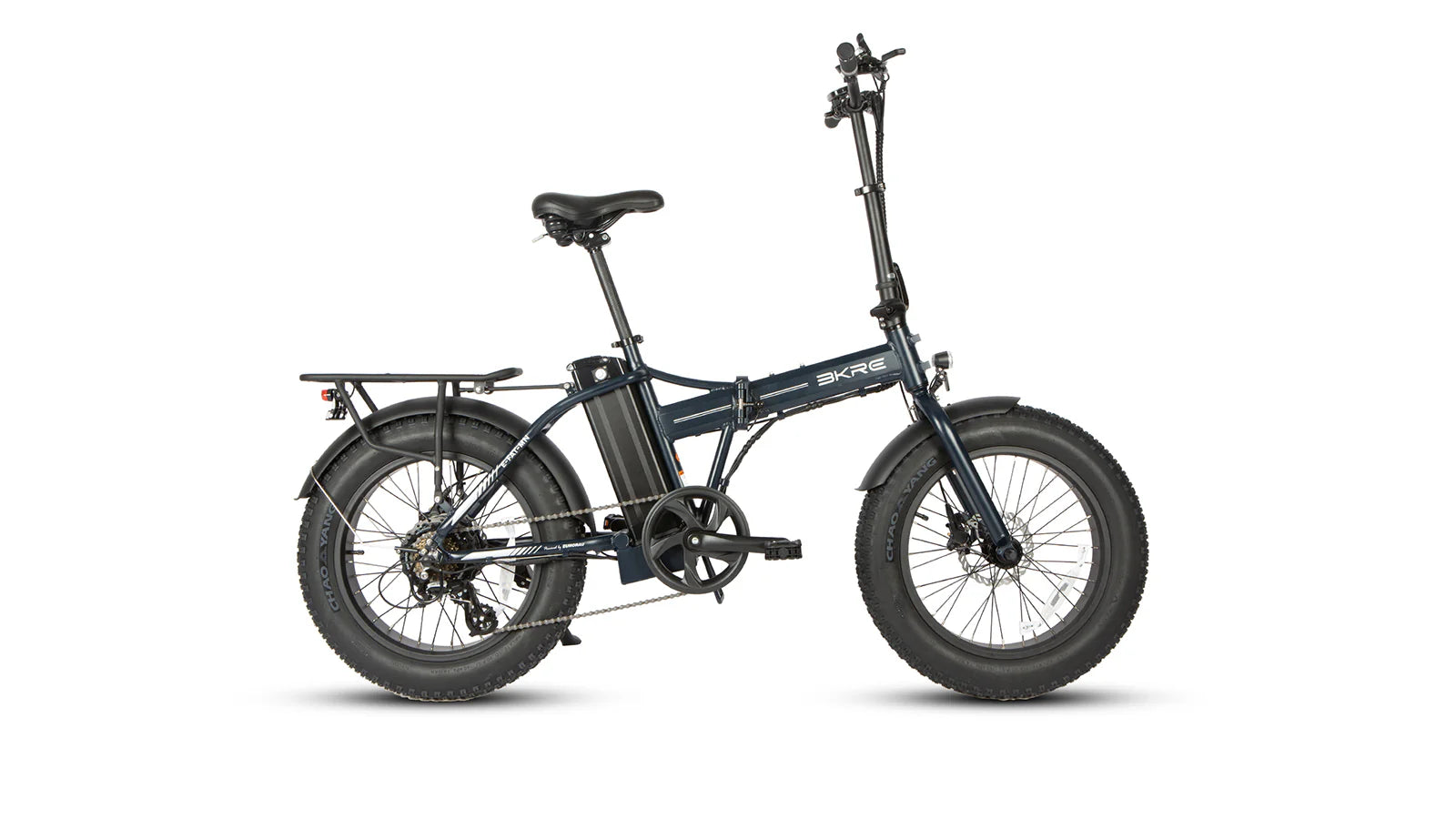

EUNORAU E-FAT-MN Folding Fat Tire E-Bike

$1,099.00 USD

Sale Out of stock

Shipping calculated at checkout.

Free shipping across the contiguous US

Free shipping4–9 business days
10-yr frame warrantyDamage & defects covered
Secure checkoutPowered by Stripe
Real supportMon–Fri, 9–5 MT

The EUNORAU E-FAT-MN is a folding fat tire commuter e-bike with a 500W rear motor and Kenda 20 x 4.0 inch tires. It folds for storage and covers 40 to 50 miles per charge.

Key Features

48V 500W rear hub motor, 80Nm torque
48V 12.5Ah removable battery
40 to 50 miles of range
20 mph max speed
Folding aluminum frame
Telescoping, foldable stem
Kenda 20 x 4.0 inch fat tires
160mm mechanical disc brakes
Shimano 7-speed drivetrain
330 lb payload capacity

Specifications

Battery	48V 12.5Ah
Range	40-50 Miles
Motor	48V 500W Brushless hub motor with 80 N.m torque
Total Payload Capacity	330 lbs
Recommended Rider Heights	5'1" ~ 6'1"
Maximum Speed	20 MPH
Charger	US standard 2.0 A smart charger
Controller	48V 20A
Display	K-LCD5 Panel
Weight	62 lbs / 28kgs
Pedal Assist Intelligent	0~5 level pedal assist
Box Dimensions	(cm) 145 L x 35 W x 77 H
Tires	KENDA/CHAOYANG Tires 20" x 4.0"
Brake	Mechanical Disc with motor cutoff switch
Rear Light	Super bright taillight controlled via display
Shifter	Shimano 7 speed gear shift system
Brake Rotor	Promax 160 MM Disc Brake
Throttle	Thumb Throttle
Crank	170mm forged Aluminum Alloy
Freewheel	Shimano Altus 7 Speed Rear Derailleur
Handlebar	Adjustable stem for comfort
Frame Material	Aluminum alloy 6061
Stem	Telescoping Height, 260mm Base with 140mm Extension, 10mm Spacer, 25.4mm Clamp Diameter
Pedal	High-Quality Folding Nylon Pedals
Front Light	LED Light
Saddle	Comfort Saddle, Height to Ground 32.6"-39.8"
Tool	Included
Chainring	48T chain-wheel crank
Rims	20inch Black Alloy

Product Description

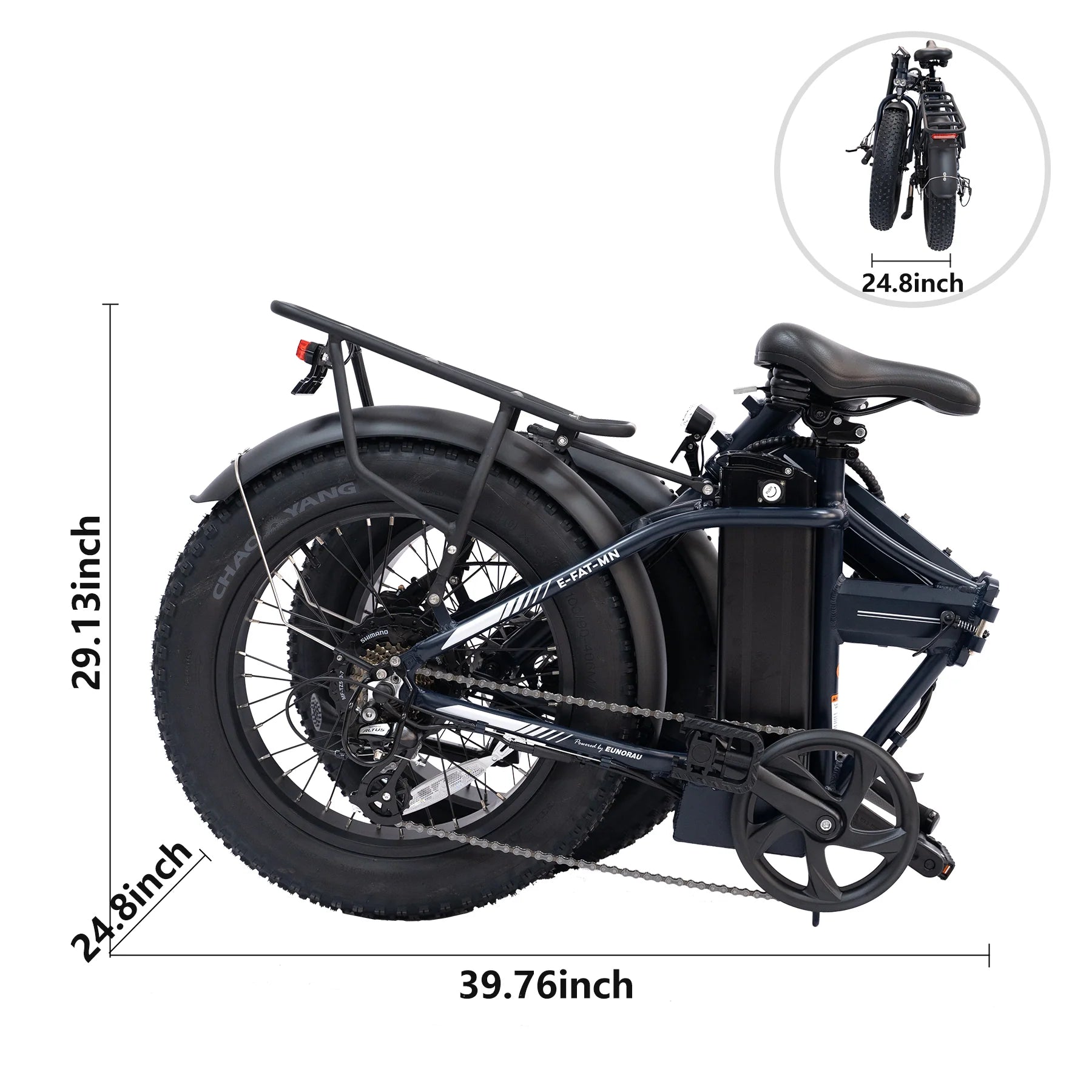

The E-FAT-MN folds down at the frame and stem, making it easy to carry in a car or keep in a small apartment. Kenda Krusade Sport 20 x 4.0 inch tires are rated from 5 to 30 psi. Drop the pressure toward 5 psi and the tires float over sand and snow. Pump them up for faster rolling on pavement.

A 48V 500W brushless rear motor with 80Nm of torque gets you up to 20 mph. The locking 48V 12.5Ah battery sits under the saddle for a low center of gravity and gives 40 to 50 miles of range with pedal assist. EUNORAU also leaves extra wiring slack at the front, which makes folding easier on the cables.

Promax 160mm mechanical disc brakes with motor cut-off, a Shimano 7-speed drivetrain and a display-controlled taillight round out the build. The bike weighs 62 lb, fits riders from 5'1" to 6'1" and carries up to 330 lb.

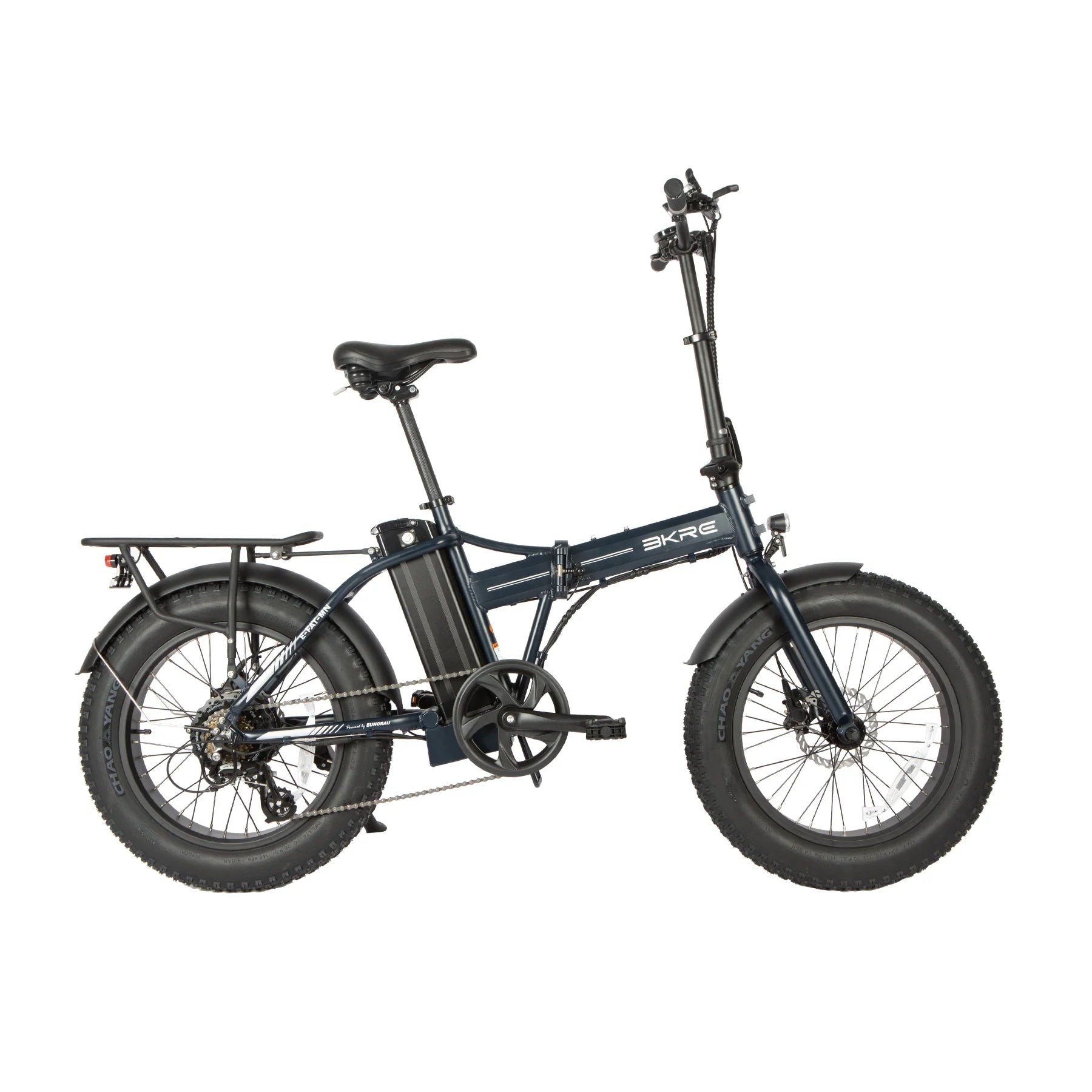

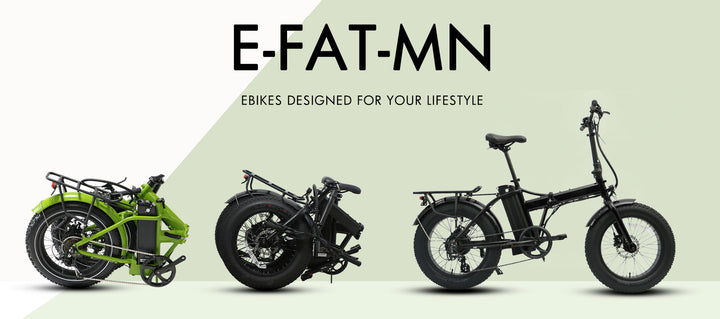

EUNORAU E-FAT-MN folding fat tire e-bike

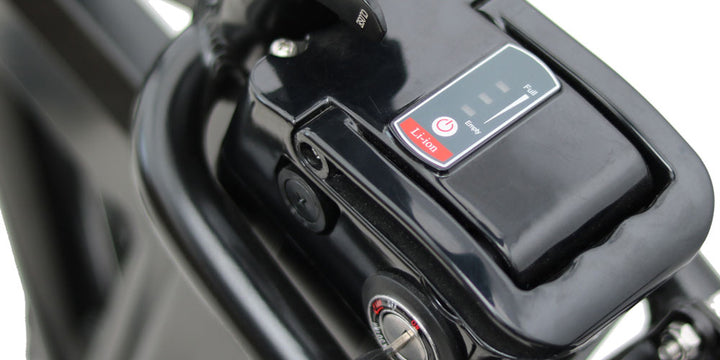

EUNORAU E-FAT-MN battery

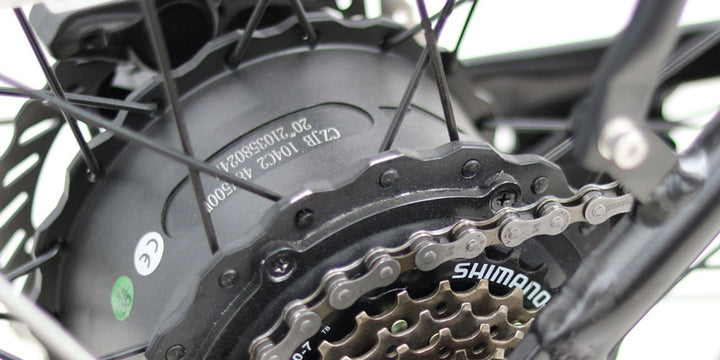

EUNORAU E-FAT-MN 500W rear motor

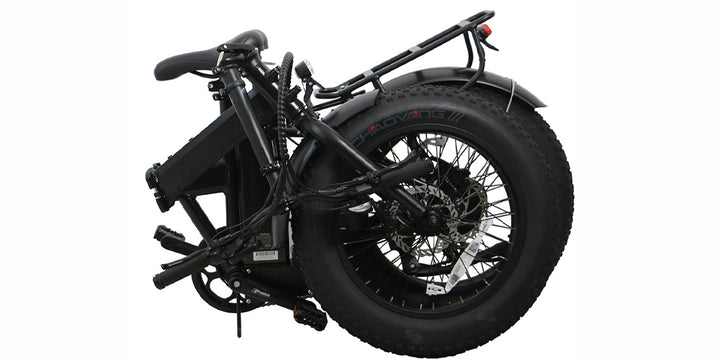

EUNORAU E-FAT-MN foldable frame

Package Includes

EUNORAU E-FAT-MN electric bike
48V 12.5Ah battery
2A smart charger
Tool kit
User manual

Shipping & Returns

Free standard shipping on every order within the contiguous United States. We do not ship to Alaska, Hawaii, Puerto Rico or other U.S. territories.
Ships directly from the manufacturer's U.S. warehouse. Orders are processed in 1–2 business days and arrive in 4–9 business days on average, with a tracking number sent by email once your order ships.
No returns after delivery. EUNORAU does not accept delivered bikes back, so this sale is final once delivered. You can cancel for a full refund until the order ships.
Damaged in shipping or defective? Report it within 48 hours of delivery with photos and a short video. Confirmed issues are covered with free replacement parts and free shipping for those parts.
Warranty: 10 years on the frame, 2 years on the motor and battery.
Every return needs approval first: email info@evolveride.com before sending anything back. Refunds go to your original payment method within 7 business days after the return is received and approved.

Shipping Policy Return & Refund Policy Return Terms by Brand

Frequently Asked Questions

How far can the EUNORAU E-FAT-MN go on a single charge?

The EUNORAU E-FAT-MN is rated for 40-50 Miles per charge. Real-world range depends on rider weight, terrain, speed, pedal-assist level and temperature, so expect less at full throttle, on steep hills or in cold weather.

What is the top speed of the EUNORAU E-FAT-MN?

The EUNORAU E-FAT-MN has a rated top speed of 20 MPH. Check your state and local rules for e-bikes before riding at full speed on public roads or paths.

What battery does the EUNORAU E-FAT-MN use and how long does it take to charge?

It uses a 48V 12.5Ah battery. Charge it with the included 2.0A smart charger and avoid storing it fully drained.

How powerful is the EUNORAU E-FAT-MN motor?

The EUNORAU E-FAT-MN uses a 48V 500W brushless hub motor with 80 N.m torque.

Who is the EUNORAU E-FAT-MN suitable for?

The recommended rider height is 5'1" ~ 6'1". Maximum load capacity is 330 lbs, including the rider and any cargo. The foldable e-bike itself weighs 62 lbs (28 kg).

Is shipping free, and can I return the EUNORAU E-FAT-MN?

EvolveRide ships the EUNORAU E-FAT-MN free across the contiguous US, with delivery typically in 4–9 business days. EUNORAU does not accept returns after delivery, but shipping damage and defects are covered, and the frame carries a 10-year warranty — see our return terms for details.
