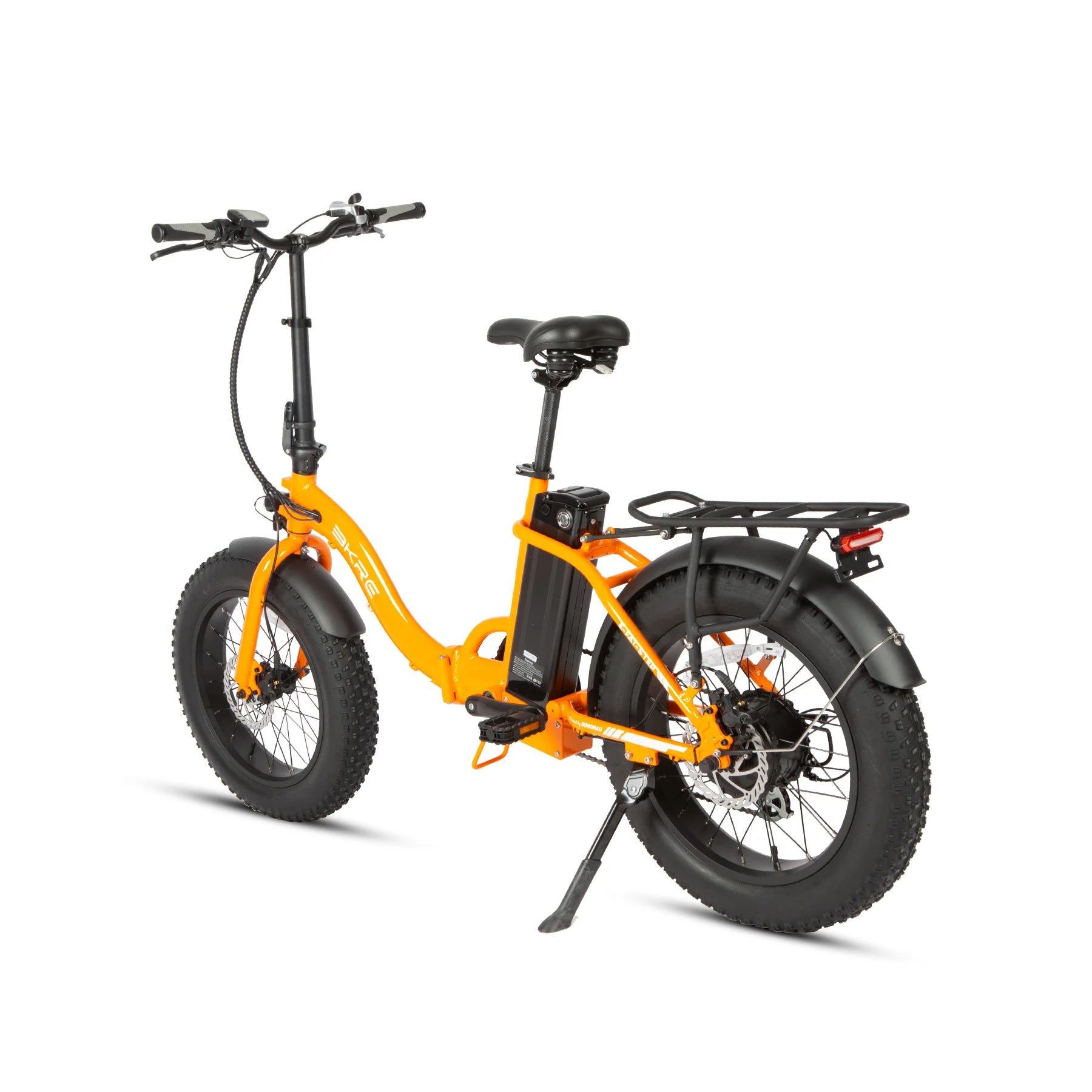

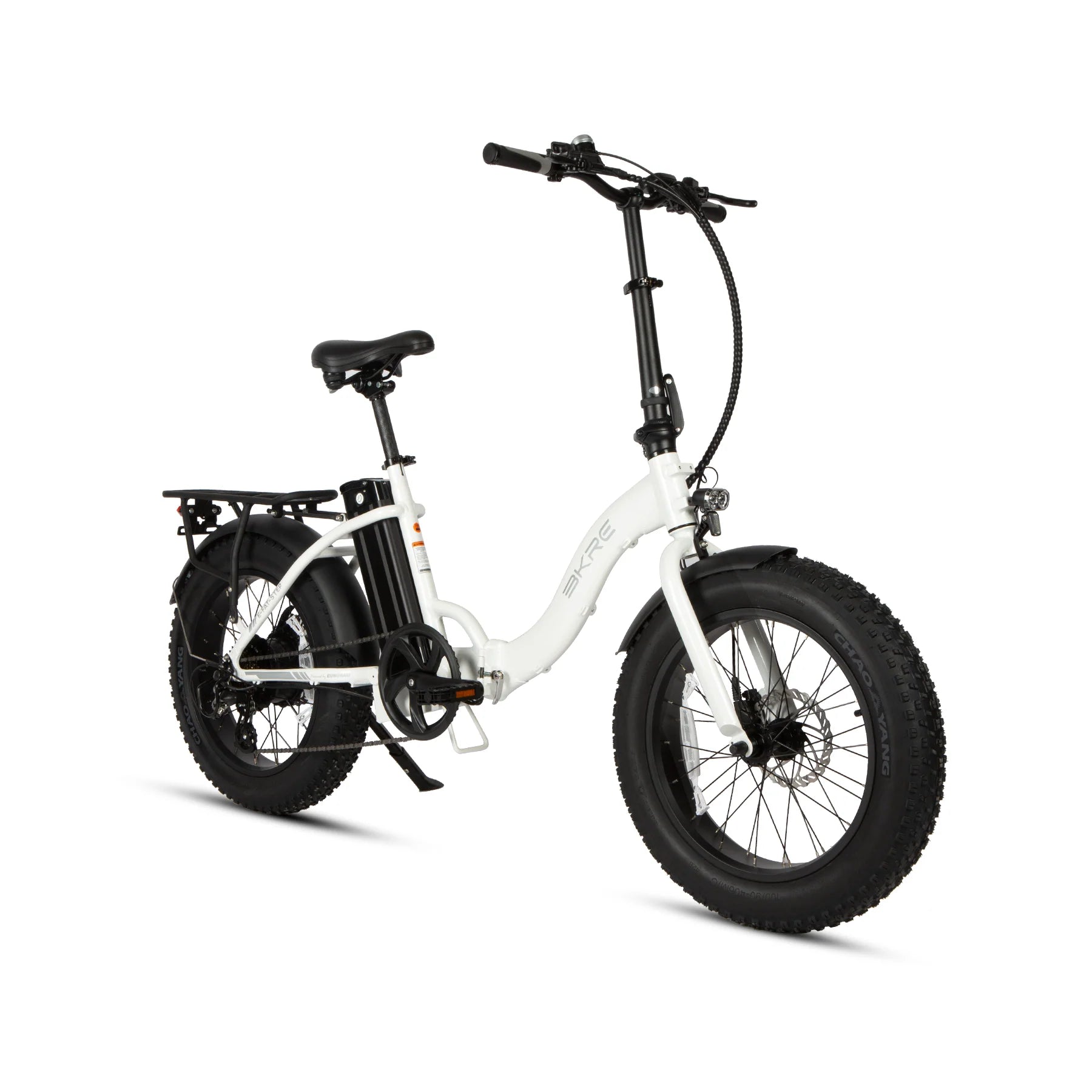

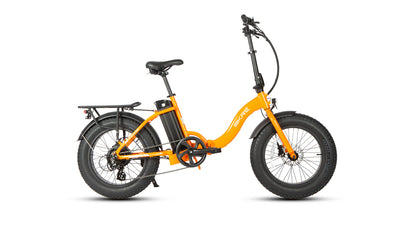

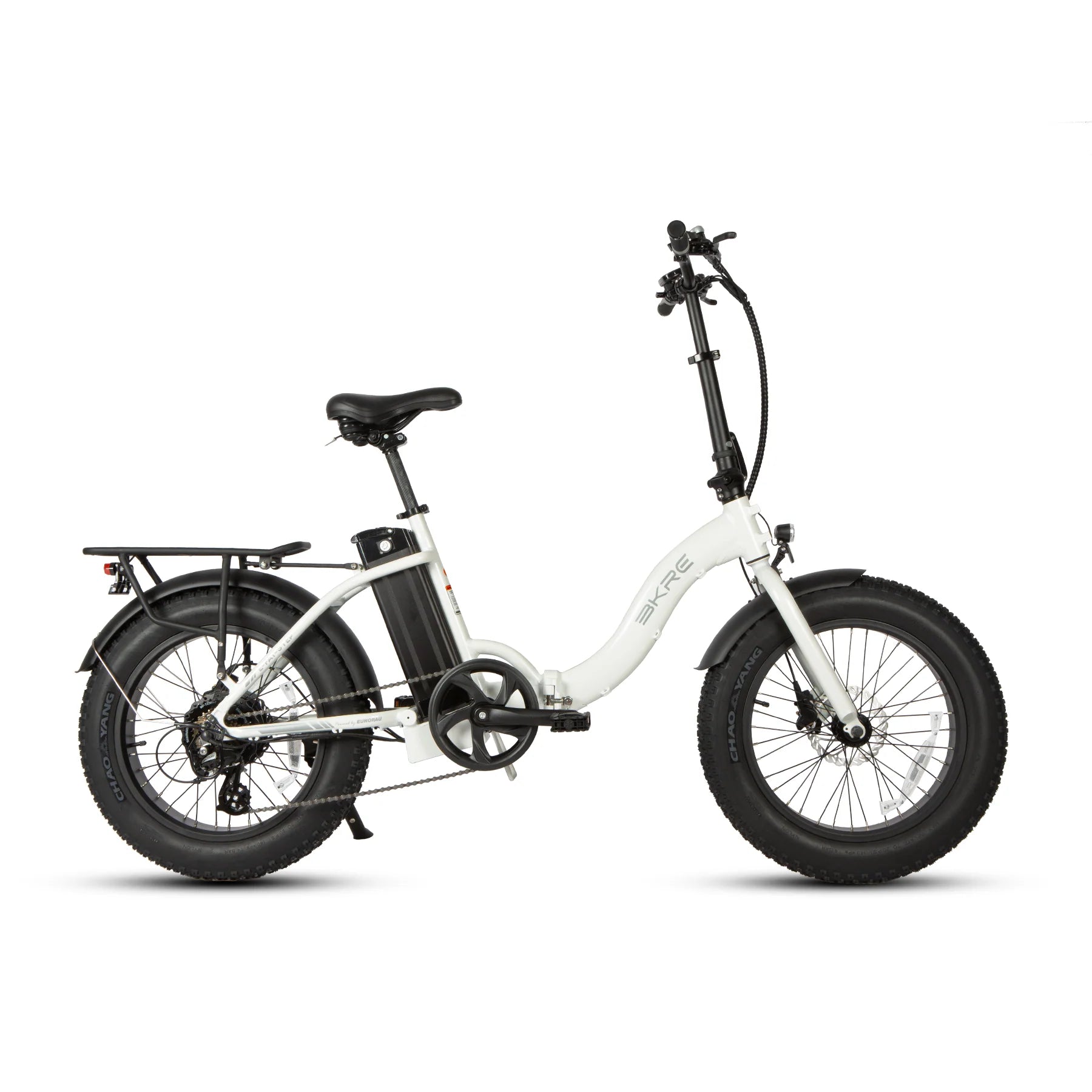

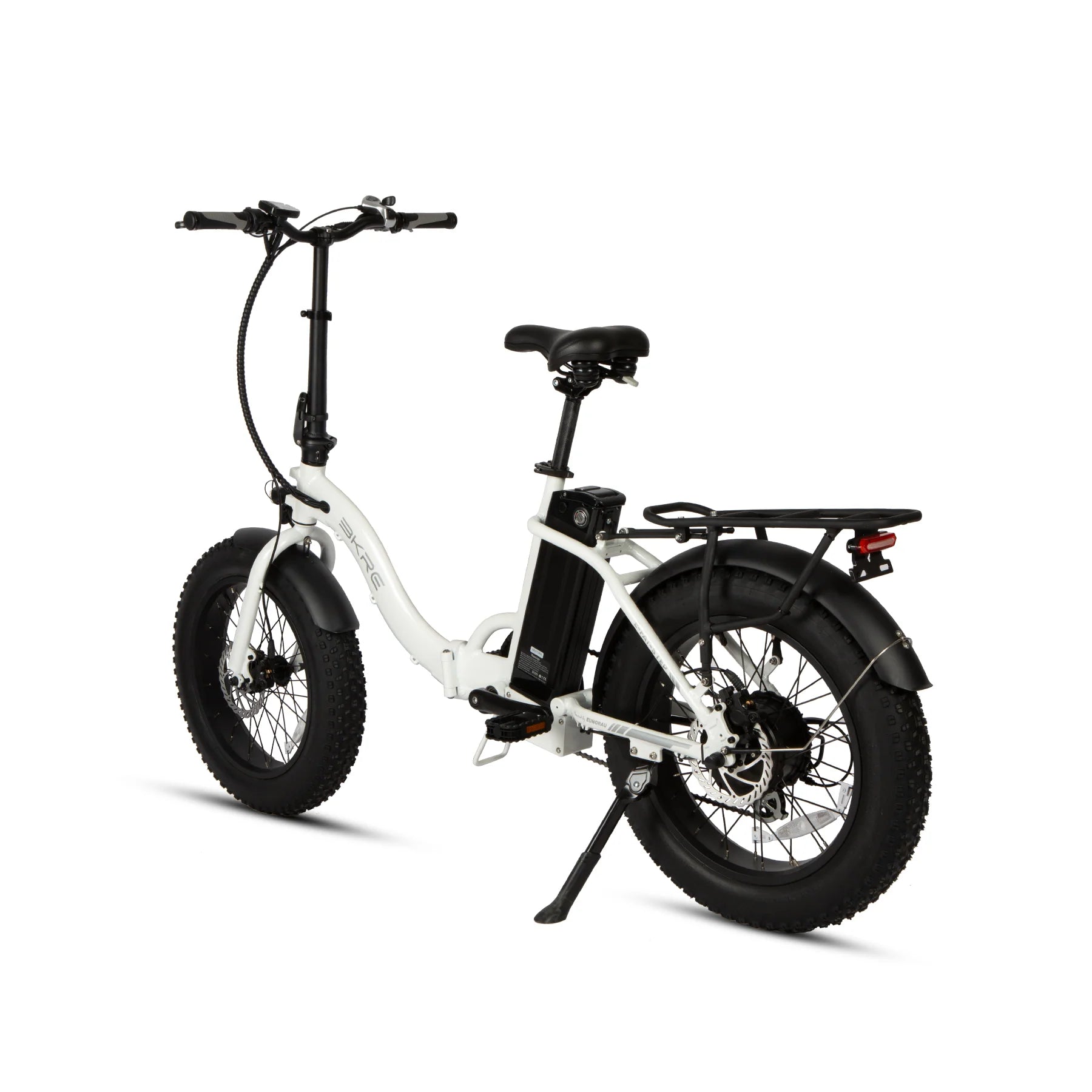

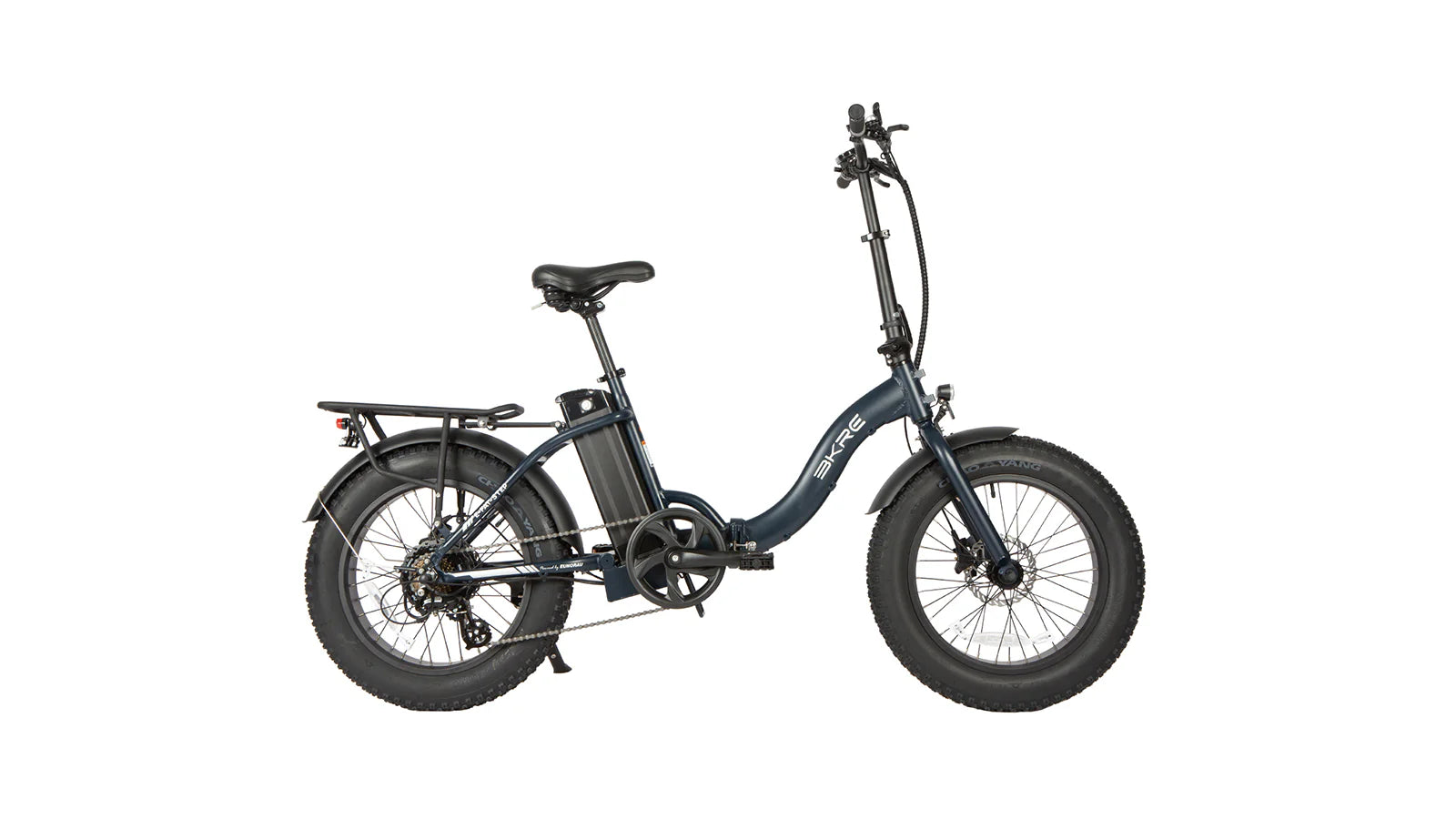

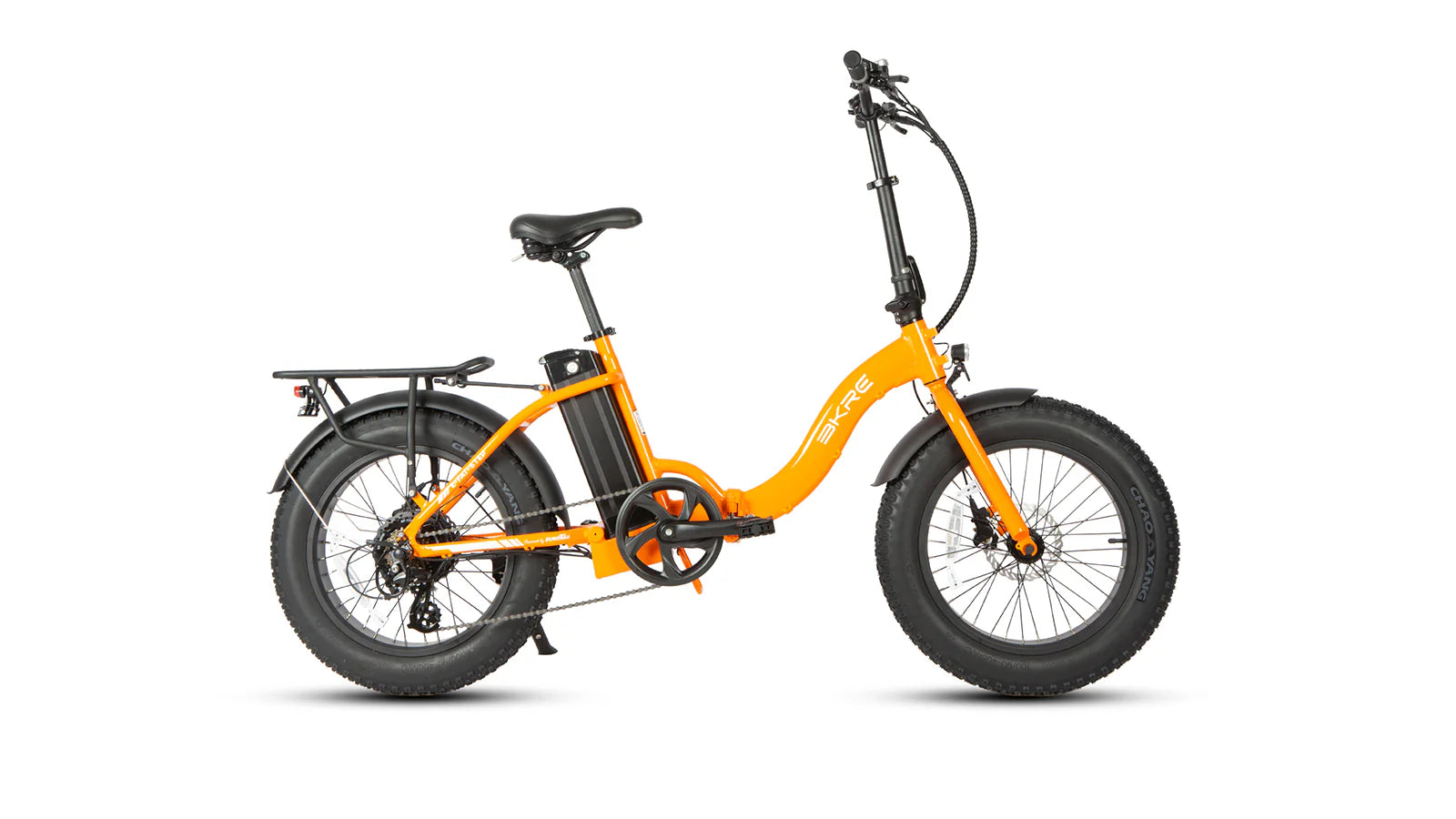

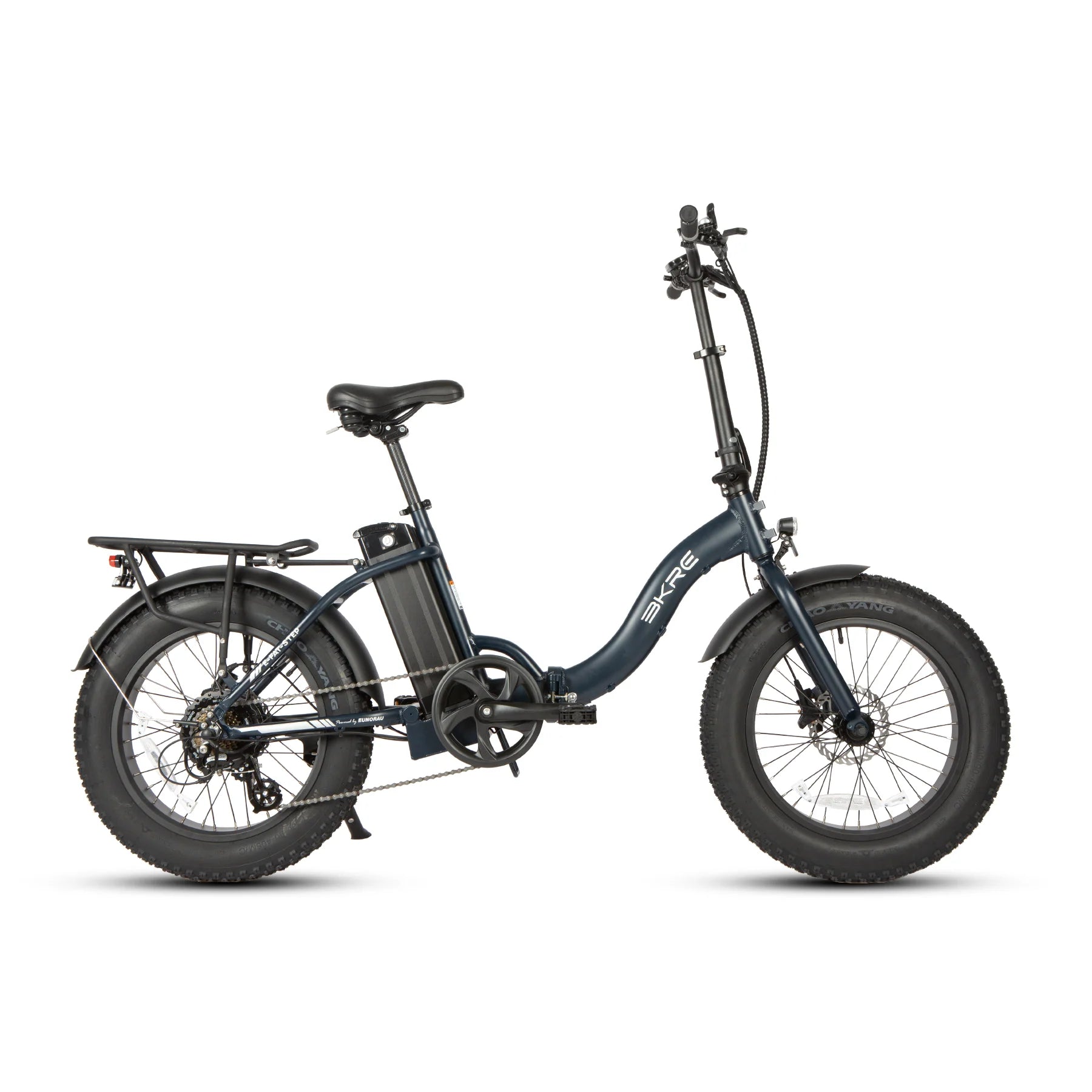

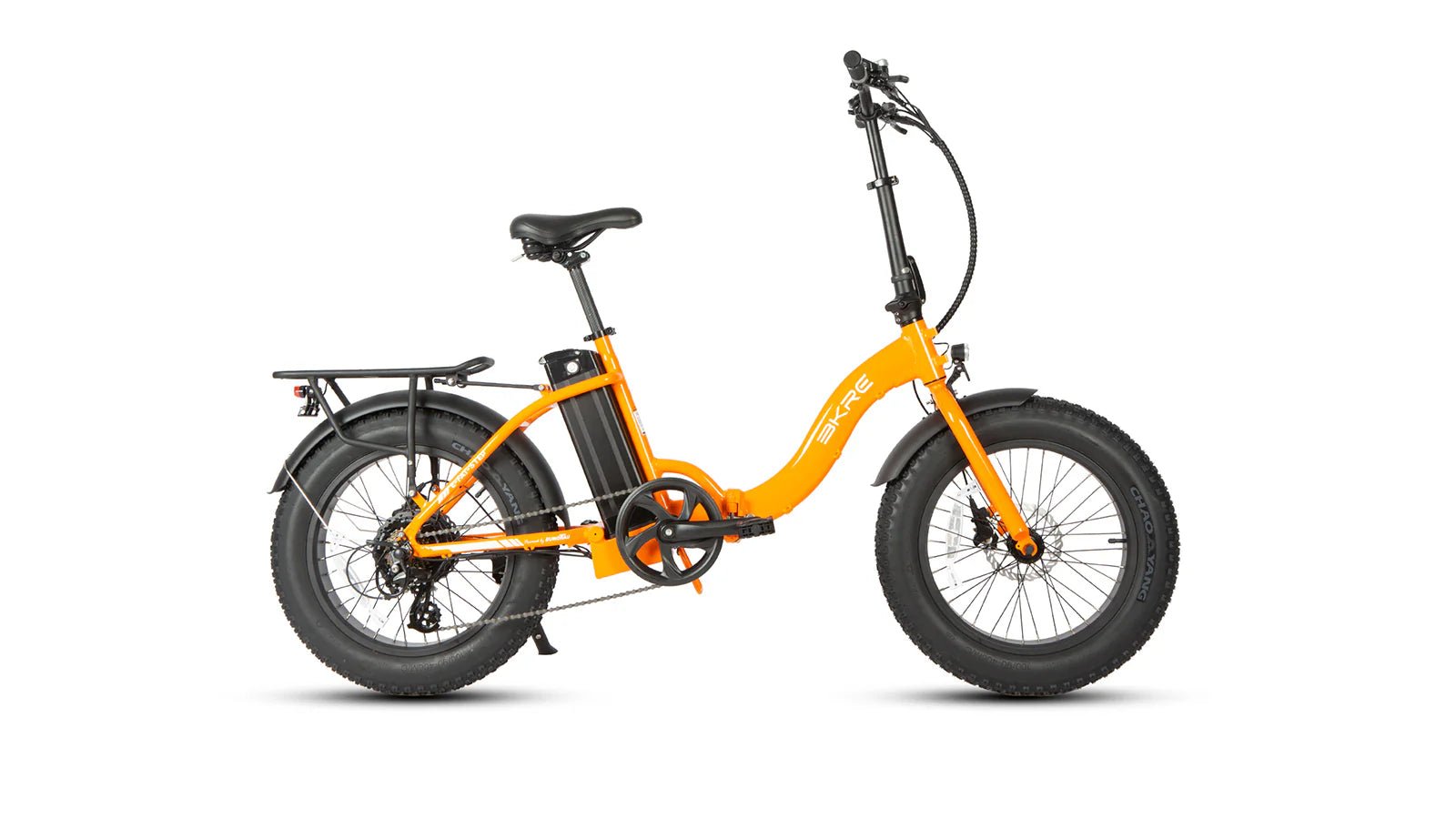

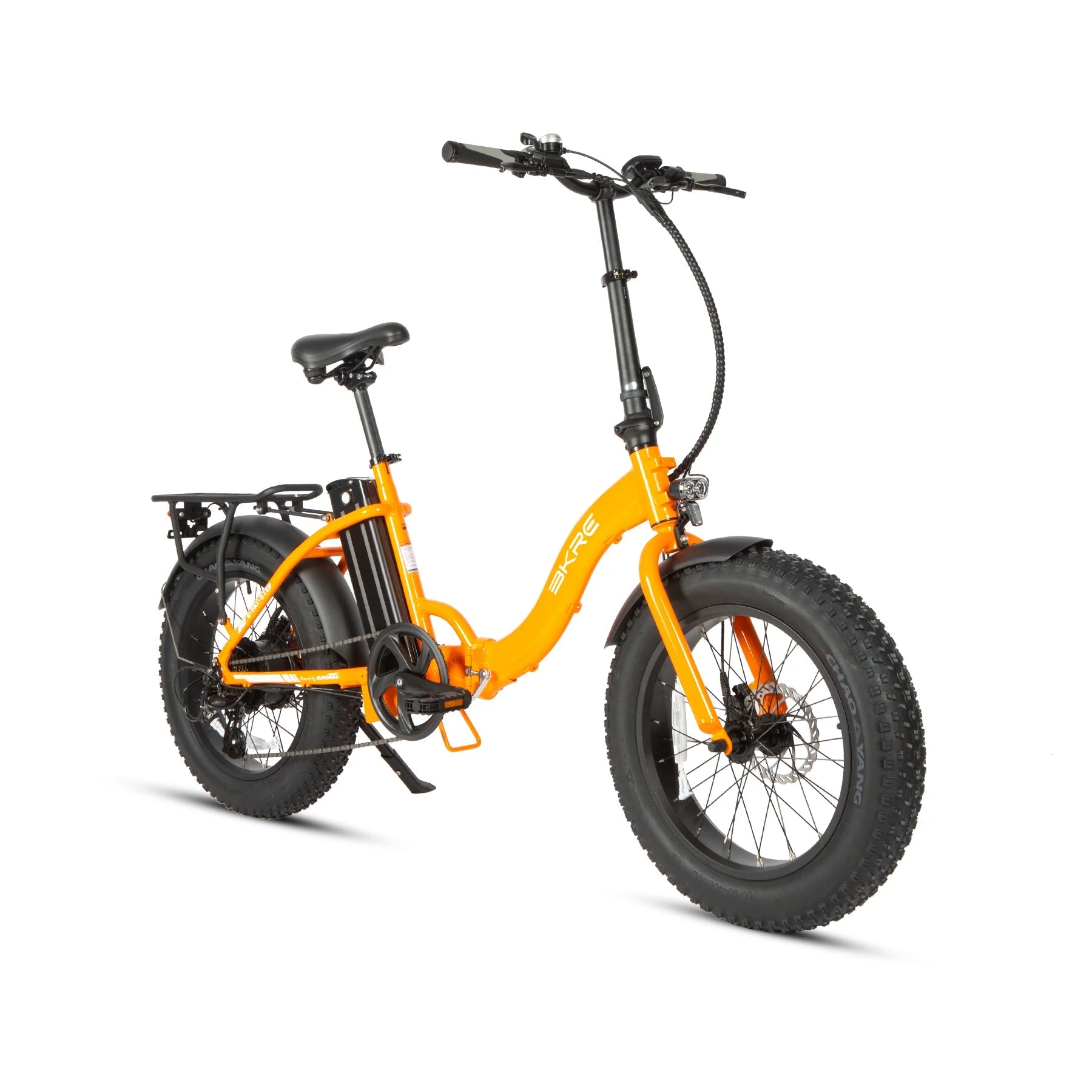

EUNORAU E-FAT-STEP Folding Fat Tire E-Bike

$1,099.00 USD

Sale Out of stock

Shipping calculated at checkout.

Free shipping across the contiguous US

Color: Vibrant Orange

Free shipping4–9 business days
10-yr frame warrantyDamage & defects covered
Secure checkoutPowered by Stripe
Real supportMon–Fri, 9–5 MT

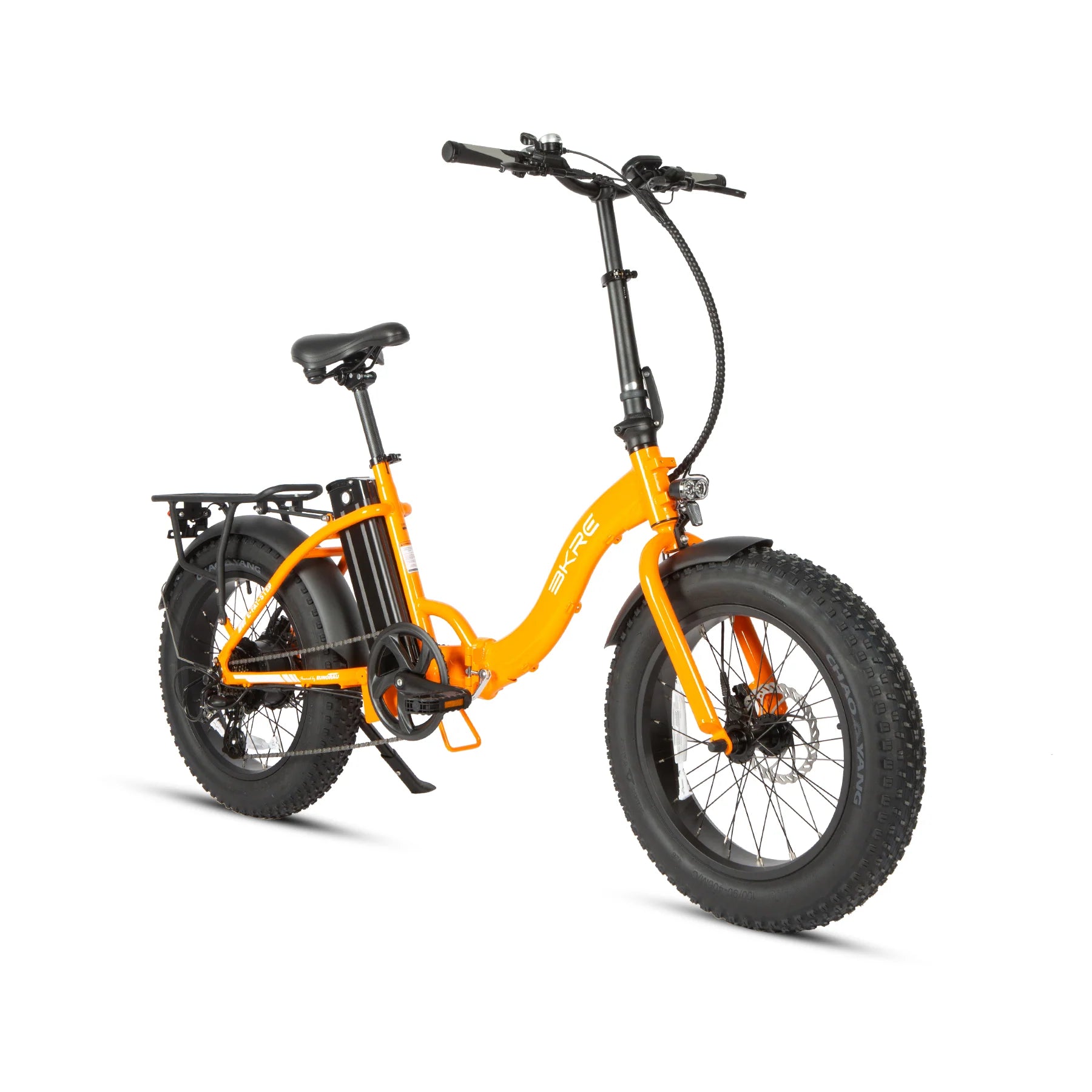

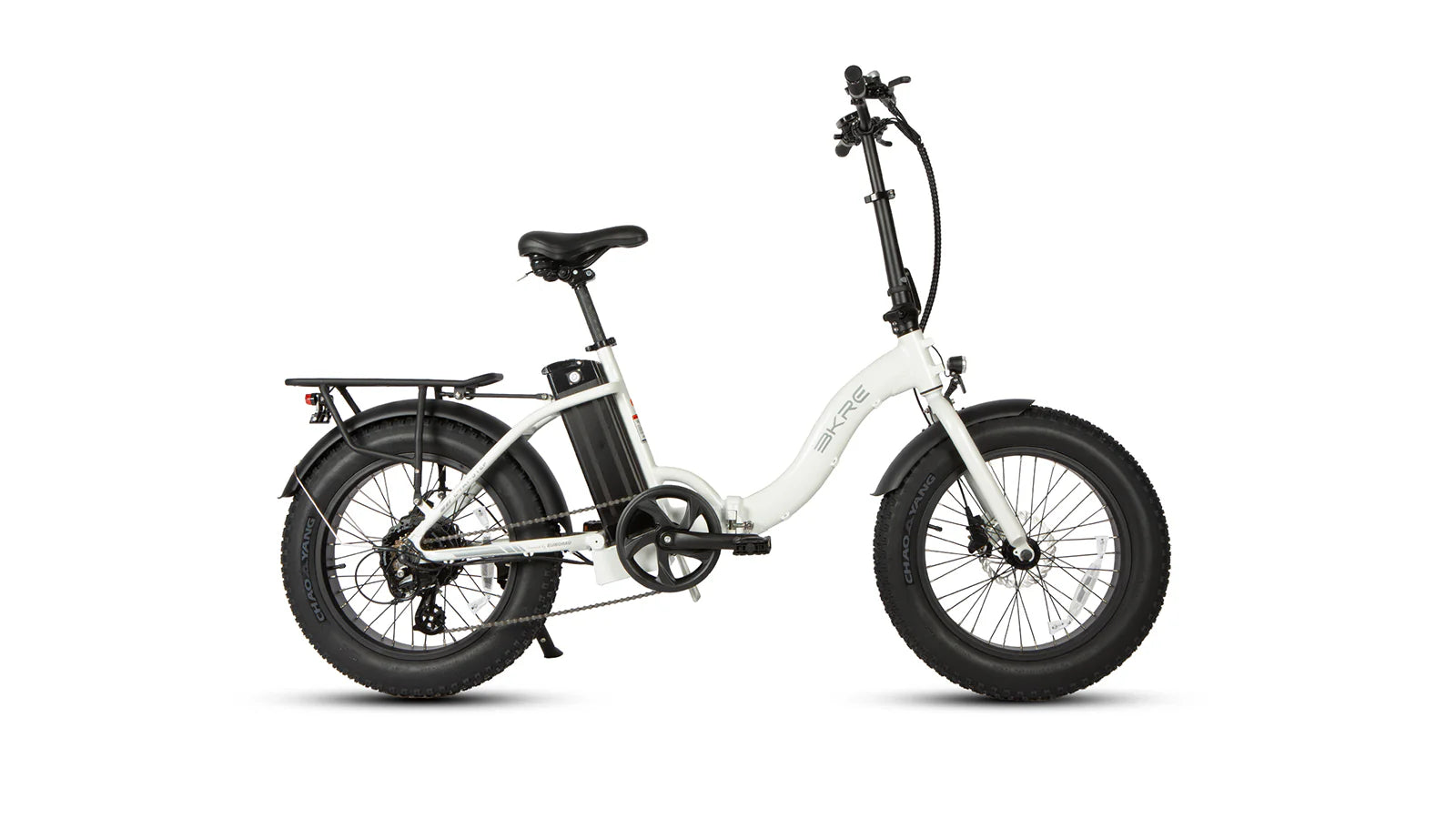

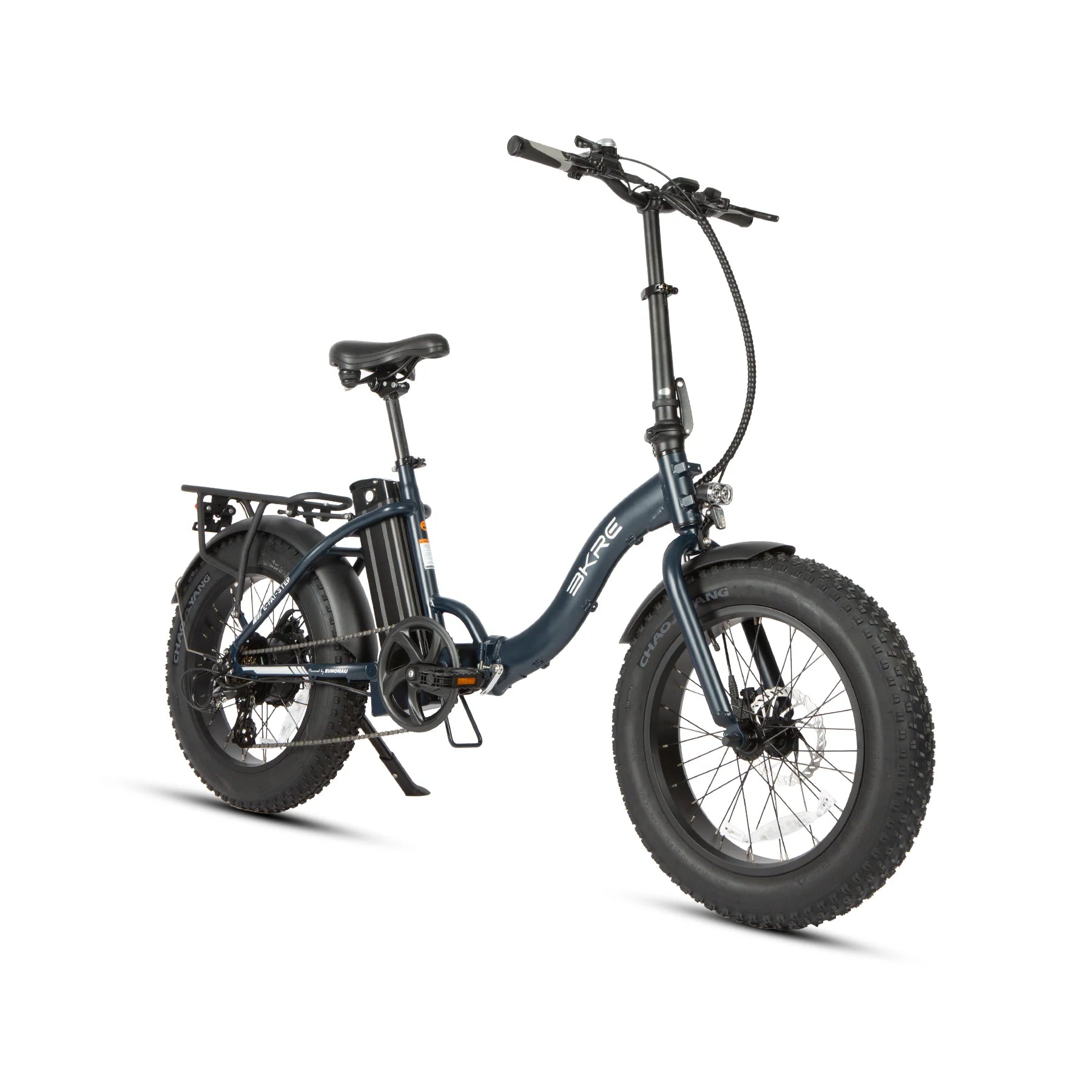

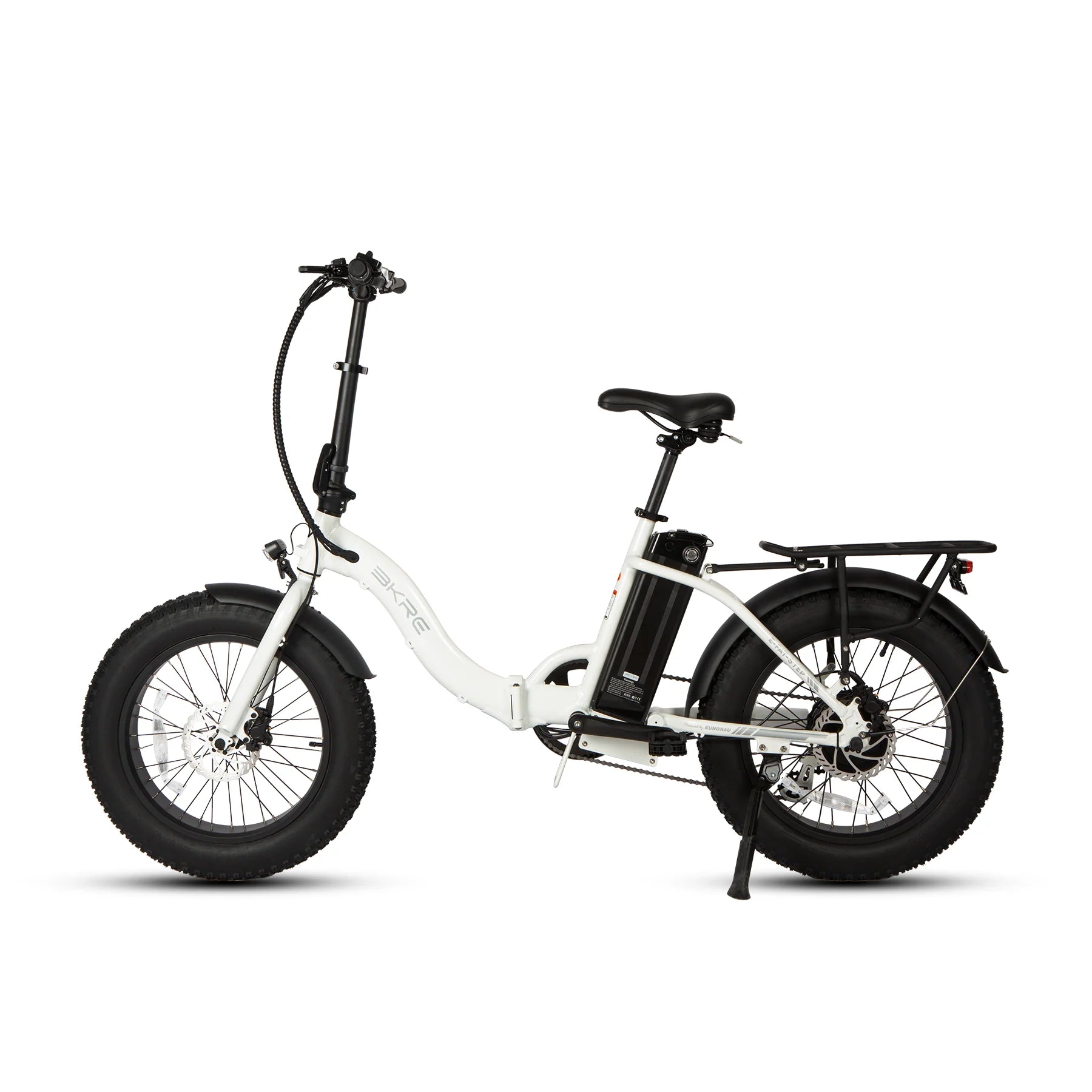

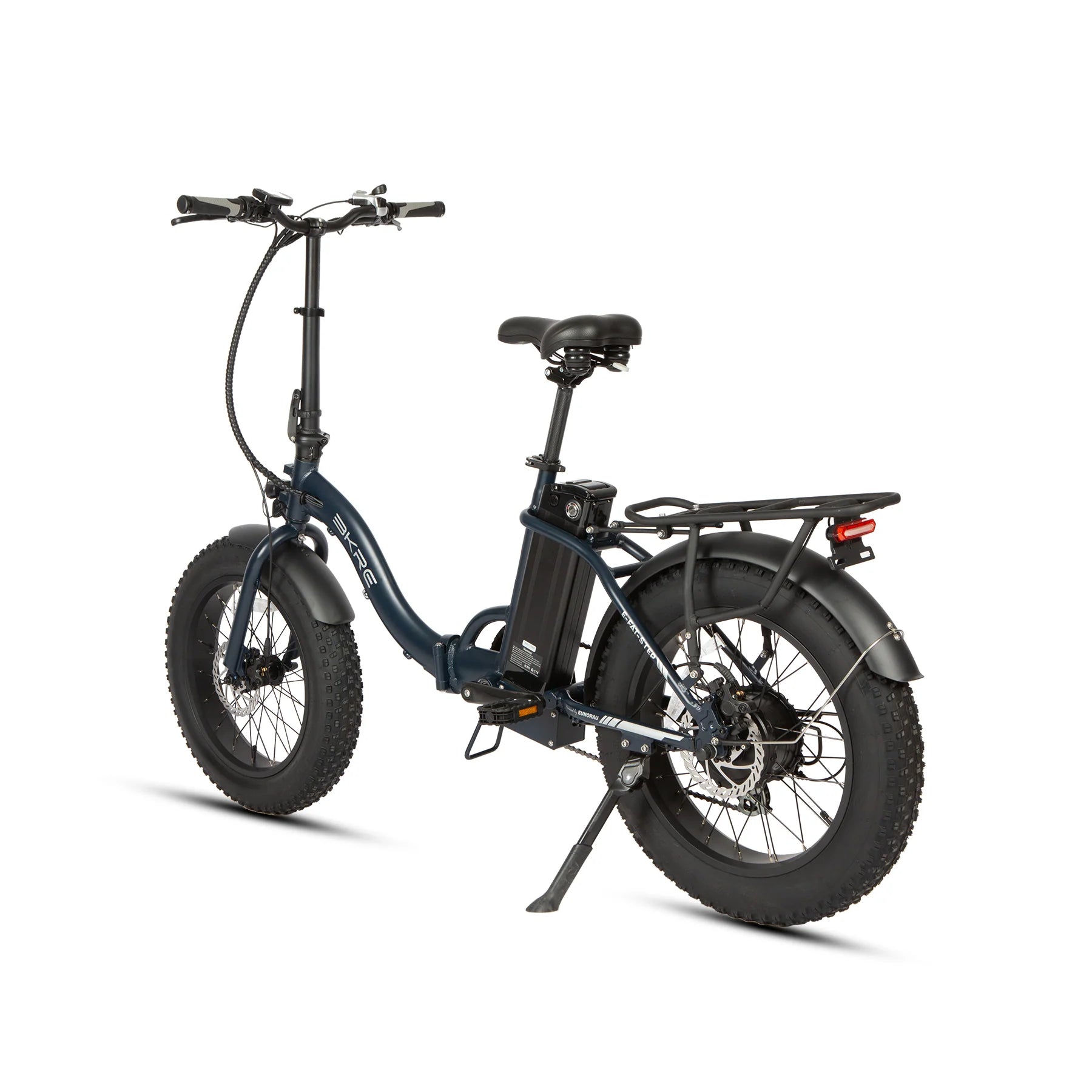

The EUNORAU E-FAT-STEP is a folding step-thru fat tire e-bike with a 500W motor and 80Nm of torque. It folds at the frame and stem for storage and covers 40 to 50 miles per charge.

Key Features

48V 500W hub motor, 80Nm torque
48V 12.5Ah removable battery
40 to 50 miles of range
20 mph max speed
Folding step-thru frame
Tool-free adjustable folding stem
20 x 4.0 inch fat tires

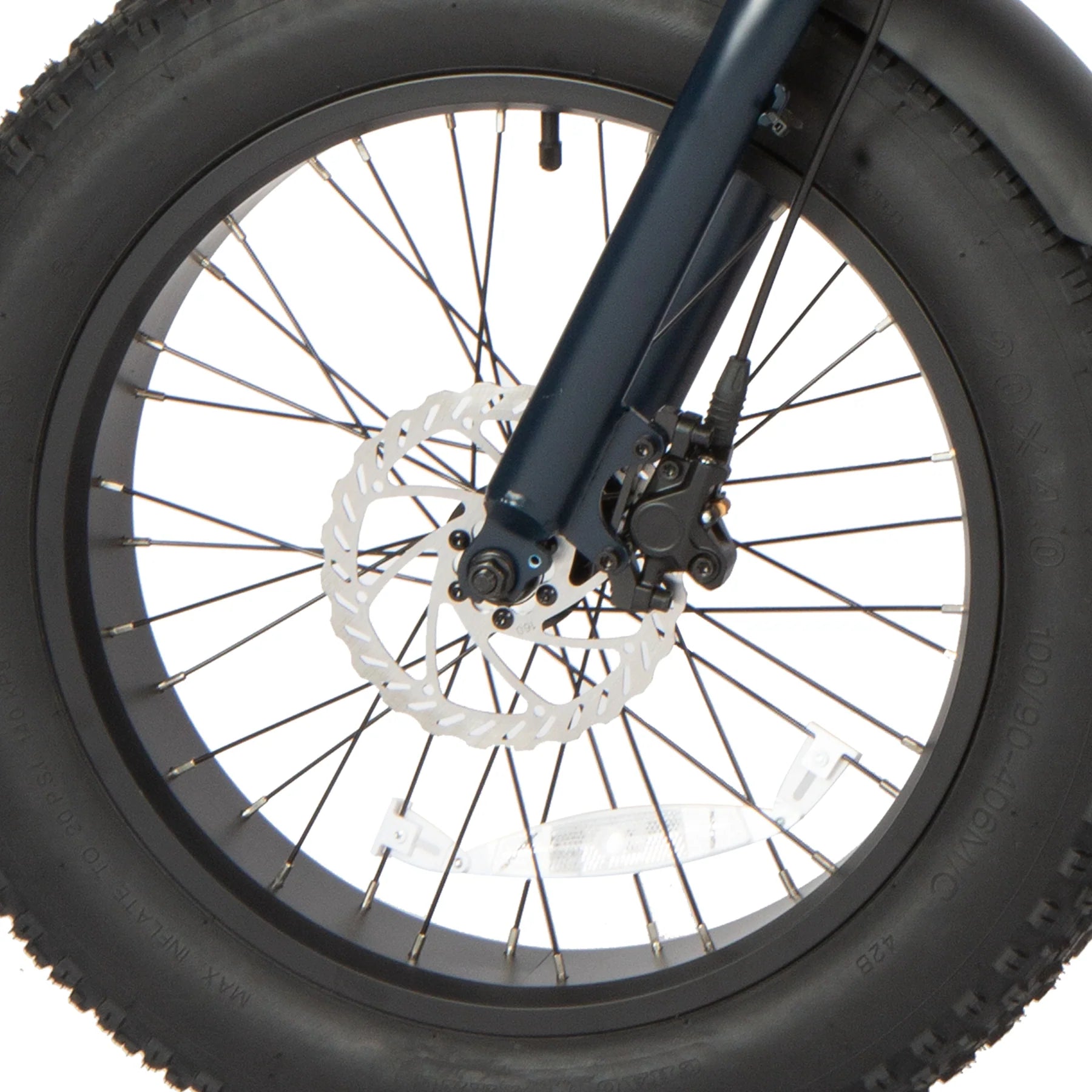

160mm hydraulic disc brakes
Shimano 7-speed drivetrain
330 lb payload capacity

Specifications

Battery	48V/12.5Ah
Range	40-50 Miles

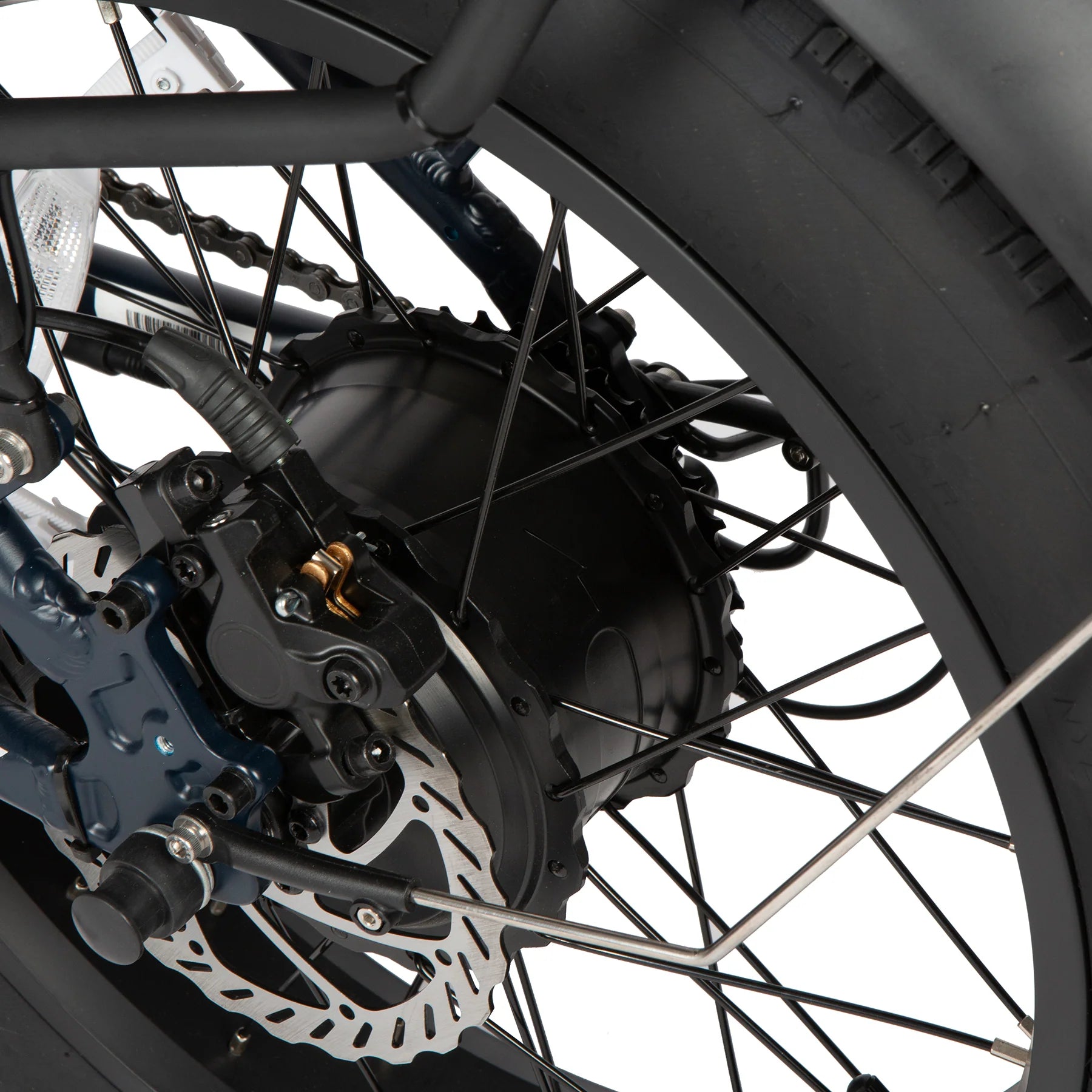

Motor	48V/500W Brushless hub motor with 80 N.m torque
Total Payload Capacity	330 lbs
Recommended Rider Heights	5'1" ~ 6'1"
Maximum Speed	20MPH
Charger	US standard 2.0 A smart charger
Controller	48V 20A
Display	K-LCD5 Panel
Weight	63lbs / 28.5kgs
Pedal Assist Intelligent	0~5 level pedal assist
Box Dimensions	(cm) 98 L x 48 W x 72 H
Tires	KENDA/CHAOYANG sport tires 20" x 4.0"
Brake lever	Eunorau hydraulic disc Lever with motor cutoff switch

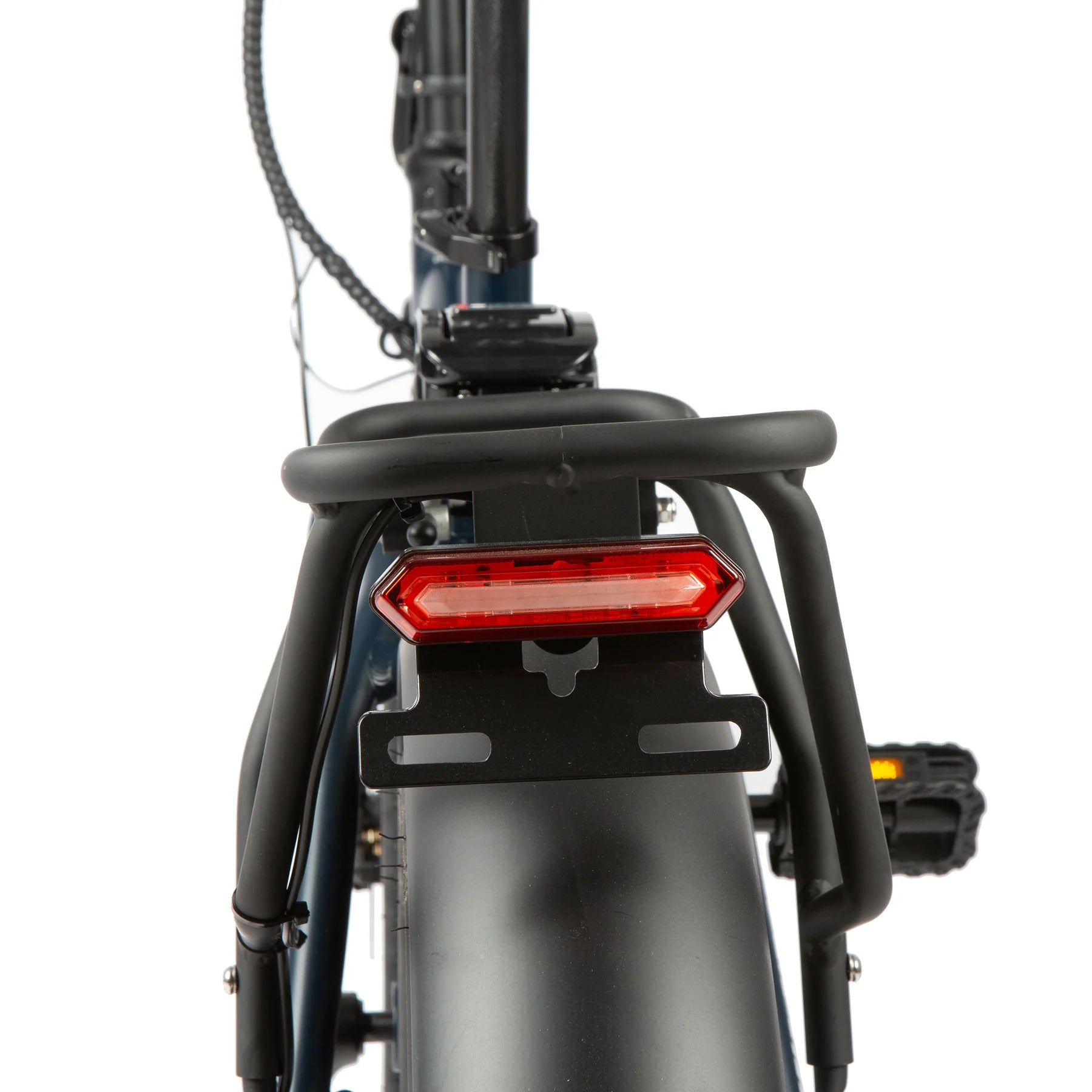

Rear Light	Super bright taillight controlled via display
Shifter	Shimano 7 speed gear shift system
Brake Rotor	Eunorau 160 MM hydraulic disc brake
Throttle	Thumb throttle

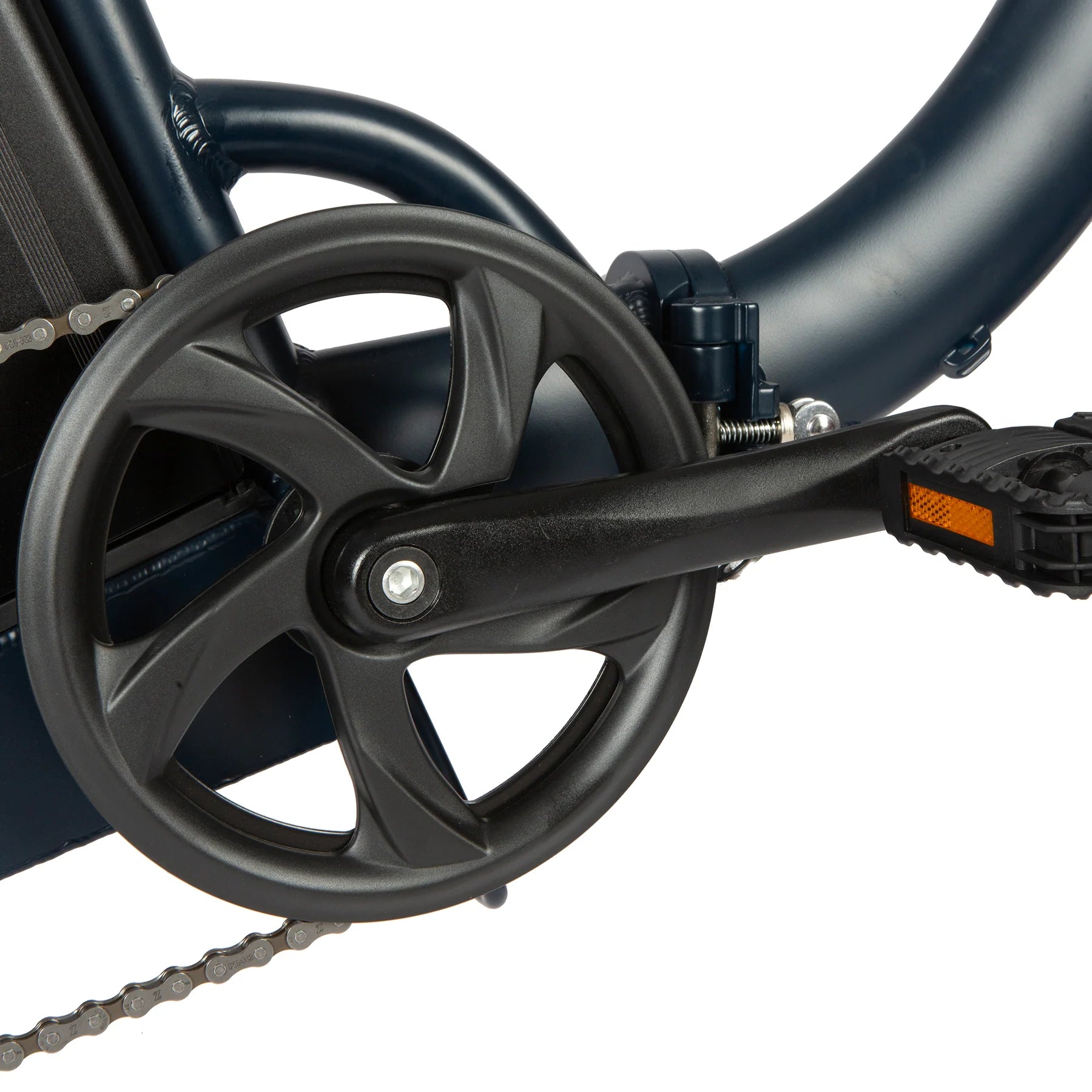

Crank	170mm forged aluminum alloy
Freewheel	Shimano altus 7 speed rear derailleur
Handlebar	Adjustable stem for comfort
Frame	Aluminum alloy
Stem	Telescoping height, 260mm base with 140mm extension, 10mm spacer, 25.4mm clamp diameter
Pedal	High-Quality folding nylon pedals
Front Light	LED light
Saddle	Comfort saddle, Height to Ground 32.2"-39.4"
Tool	Included
Chainring	48T chain-wheel crank
Rims	20inch black alloy

Product Description

The E-FAT-STEP folds at the main frame and the stem, so it fits in a car trunk, a closet or an RV. The low step-thru frame makes it easy to get on and off, and it fits riders from 5'1" to 6'1".

You can adjust the stem height by up to 135mm without tools, and the stem folds 170 degrees to the side. A 48V 500W brushless hub motor with 80Nm of torque gives strong starts, with a 20 mph top speed. The locking 48V 12.5Ah battery sits under the saddle, which keeps the weight low and centered, and it covers 40 to 50 miles with pedal assist.

20 x 4.0 inch fat tires add grip and comfort on sand, snow and broken pavement. 160mm hydraulic disc brakes cut the motor when you brake, and a Shimano 7-speed drivetrain handles hills. The taillight is controlled from the display. The bike weighs 63 lb and carries up to 330 lb.

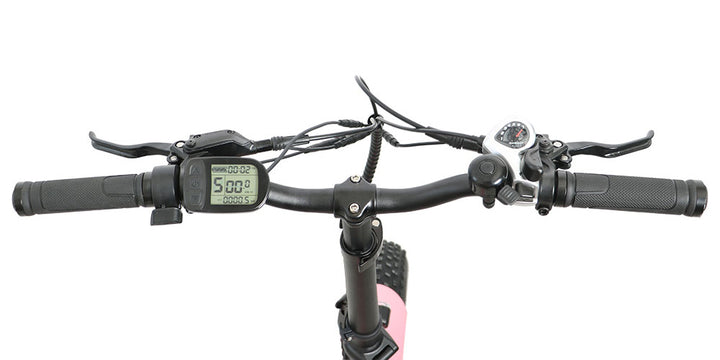

EUNORAU E-FAT-STEP adjustable folding stem

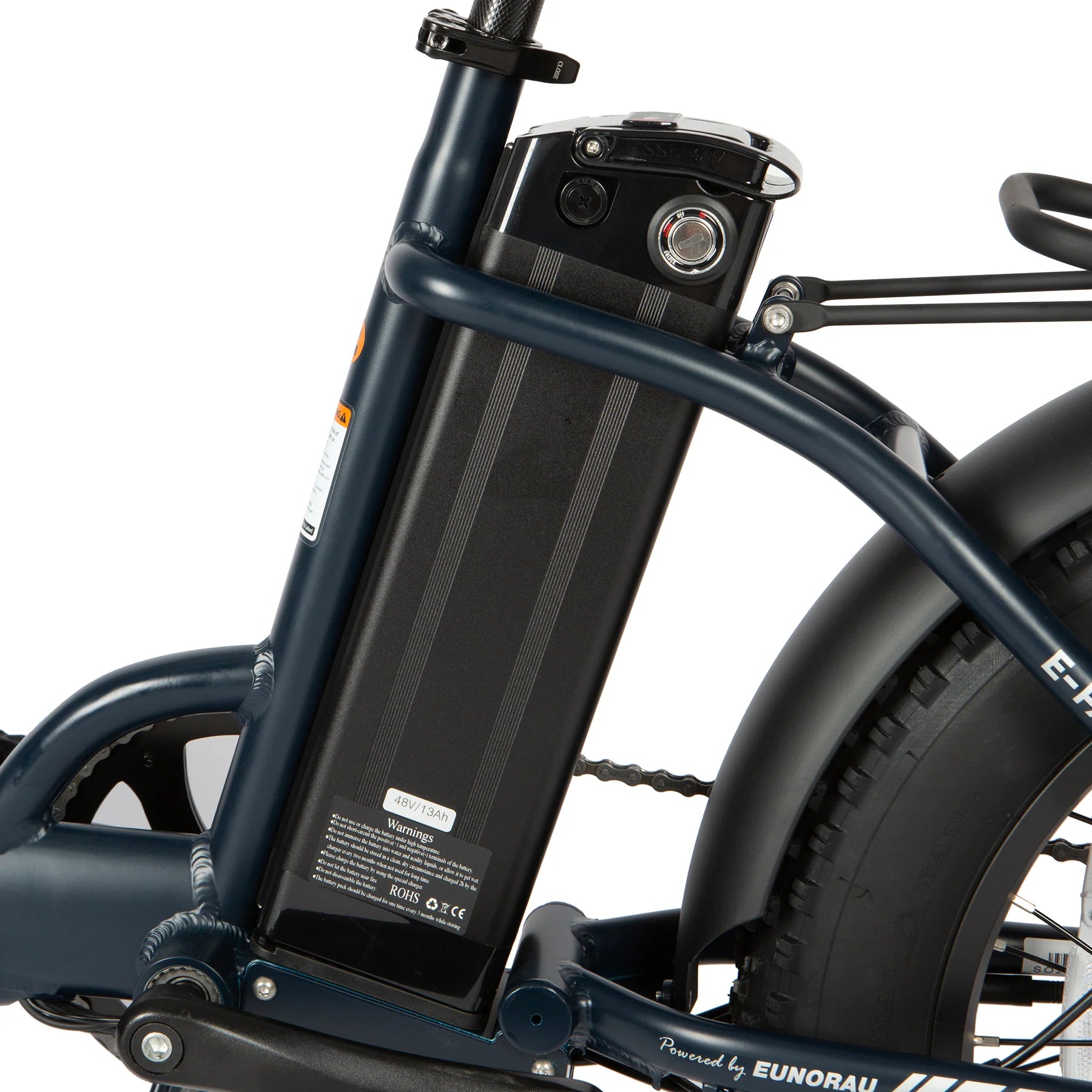

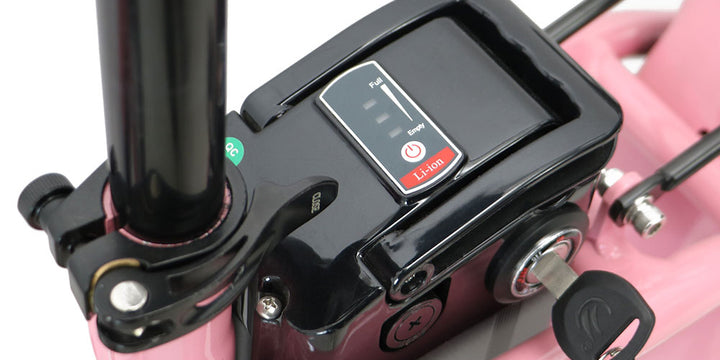

EUNORAU E-FAT-STEP 12.5Ah battery

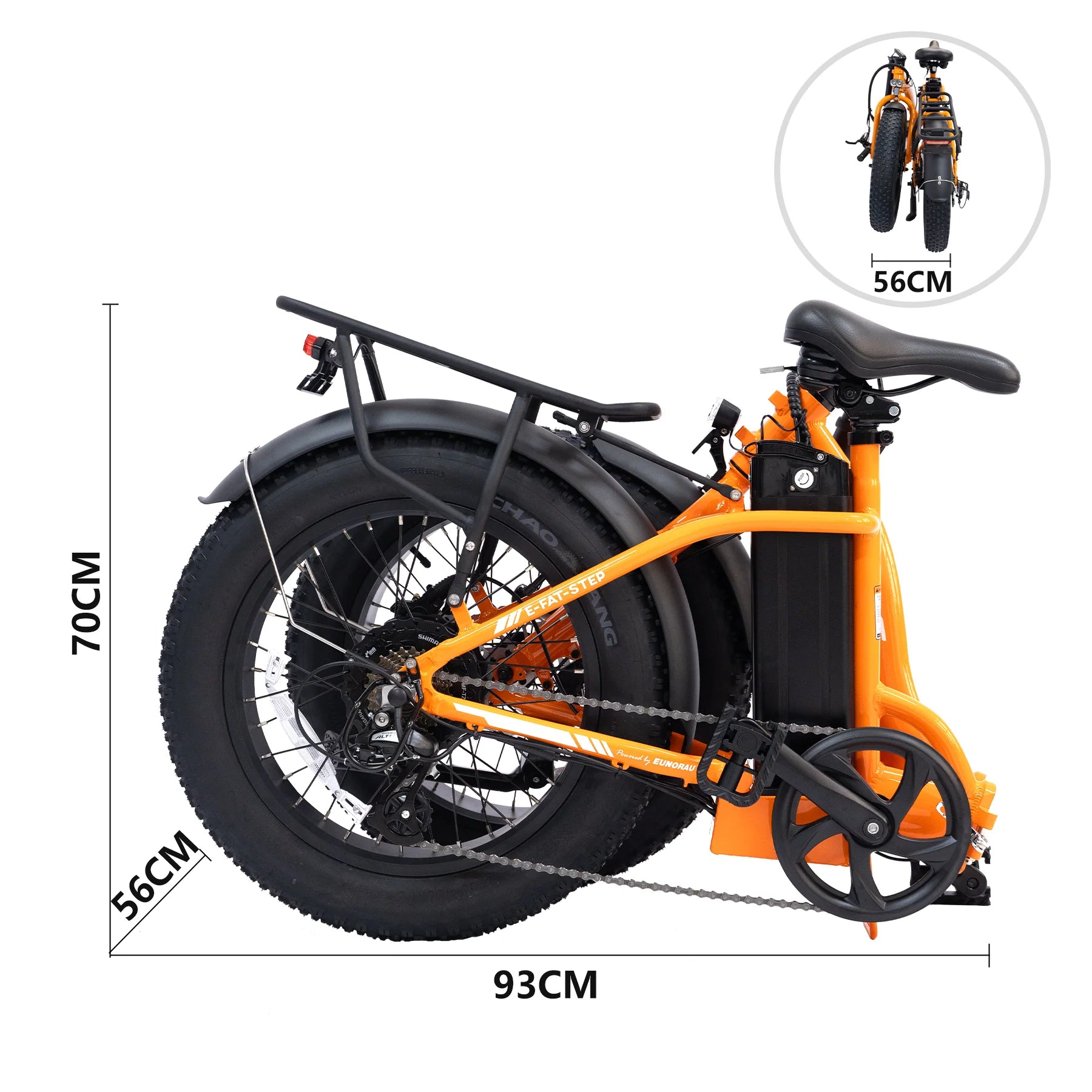

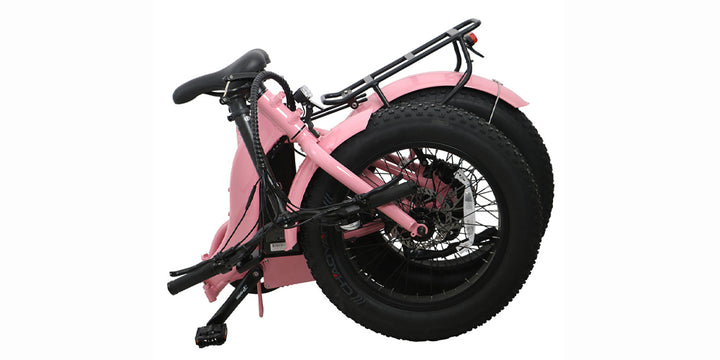

EUNORAU E-FAT-STEP folded

Package Includes

EUNORAU E-FAT-STEP electric bike
48V 12.5Ah battery
2A smart charger
Tool kit
User manual

Shipping & Returns

Free standard shipping on every order within the contiguous United States. We do not ship to Alaska, Hawaii, Puerto Rico or other U.S. territories.
Ships directly from the manufacturer's U.S. warehouse. Orders are processed in 1–2 business days and arrive in 4–9 business days on average, with a tracking number sent by email once your order ships.
No returns after delivery. EUNORAU does not accept delivered bikes back, so this sale is final once delivered. You can cancel for a full refund until the order ships.
Damaged in shipping or defective? Report it within 48 hours of delivery with photos and a short video. Confirmed issues are covered with free replacement parts and free shipping for those parts.
Warranty: 10 years on the frame, 2 years on the motor and battery.
Every return needs approval first: email info@evolveride.com before sending anything back. Refunds go to your original payment method within 7 business days after the return is received and approved.

Shipping Policy Return & Refund Policy Return Terms by Brand

Frequently Asked Questions

How far can the EUNORAU E-FAT-STEP go on a single charge?

The EUNORAU E-FAT-STEP is rated for 40-50 Miles per charge. Real-world range depends on rider weight, terrain, speed, pedal-assist level and temperature, so expect less at full throttle, on steep hills or in cold weather.

What is the top speed of the EUNORAU E-FAT-STEP?

The EUNORAU E-FAT-STEP has a rated top speed of 20MPH. Check your state and local rules for e-bikes before riding at full speed on public roads or paths.

What battery does the EUNORAU E-FAT-STEP use and how long does it take to charge?

It uses a 48V/12.5Ah battery. Charge it with the included 2.0A smart charger and avoid storing it fully drained.

How powerful is the EUNORAU E-FAT-STEP motor?

The EUNORAU E-FAT-STEP uses a 48V/500W brushless hub motor with 80 N.m torque.

Who is the EUNORAU E-FAT-STEP suitable for?

The recommended rider height is 5'1" ~ 6'1". Maximum load capacity is 330 lbs, including the rider and any cargo. The foldable step-thru e-bike itself weighs 63 lbs (28.5 kg).

Is shipping free, and can I return the EUNORAU E-FAT-STEP?

EvolveRide ships the EUNORAU E-FAT-STEP free across the contiguous US, with delivery typically in 4–9 business days. EUNORAU does not accept returns after delivery, but shipping damage and defects are covered, and the frame carries a 10-year warranty — see our return terms for details.
